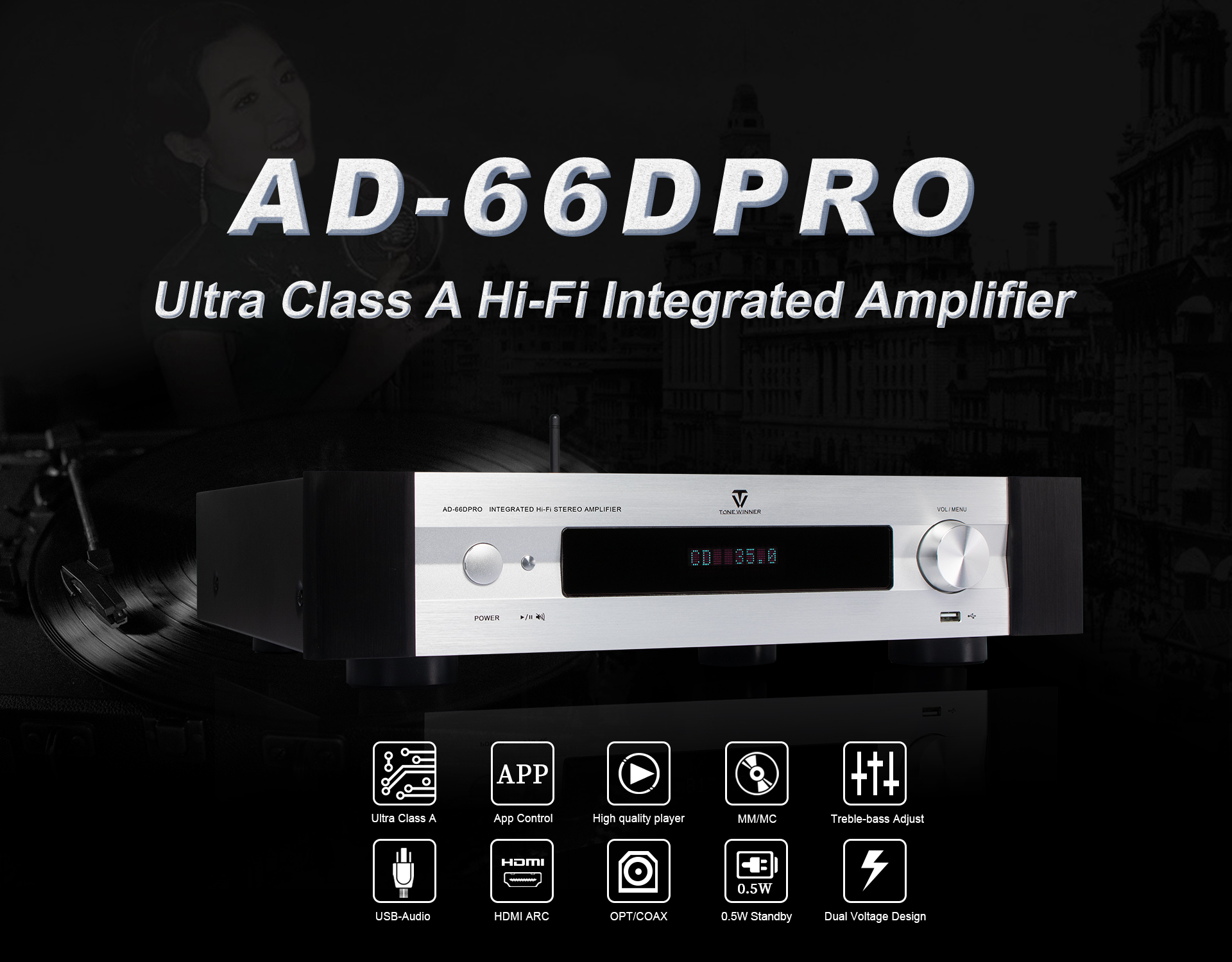

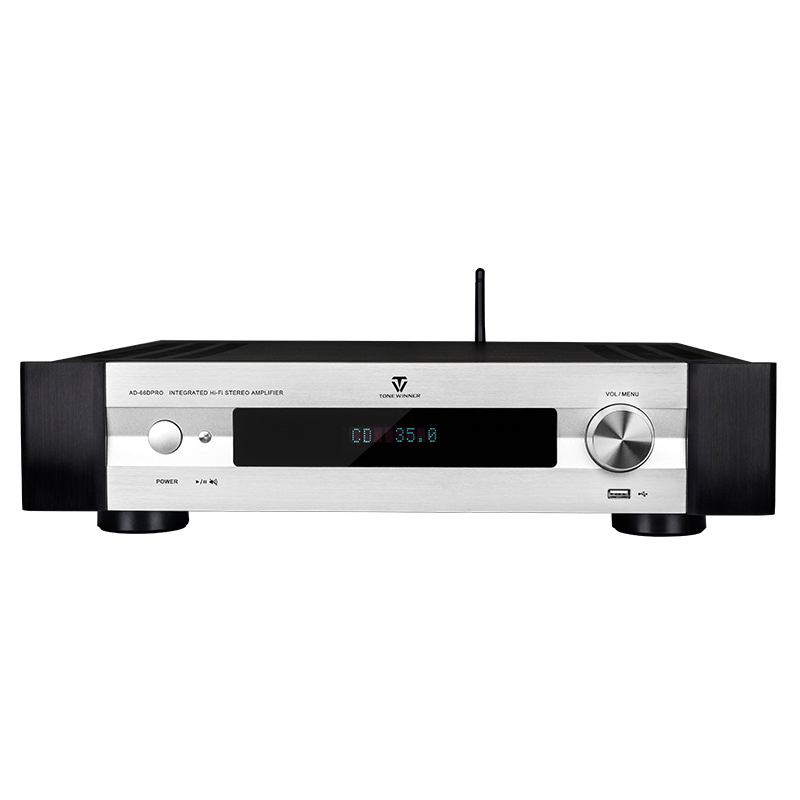

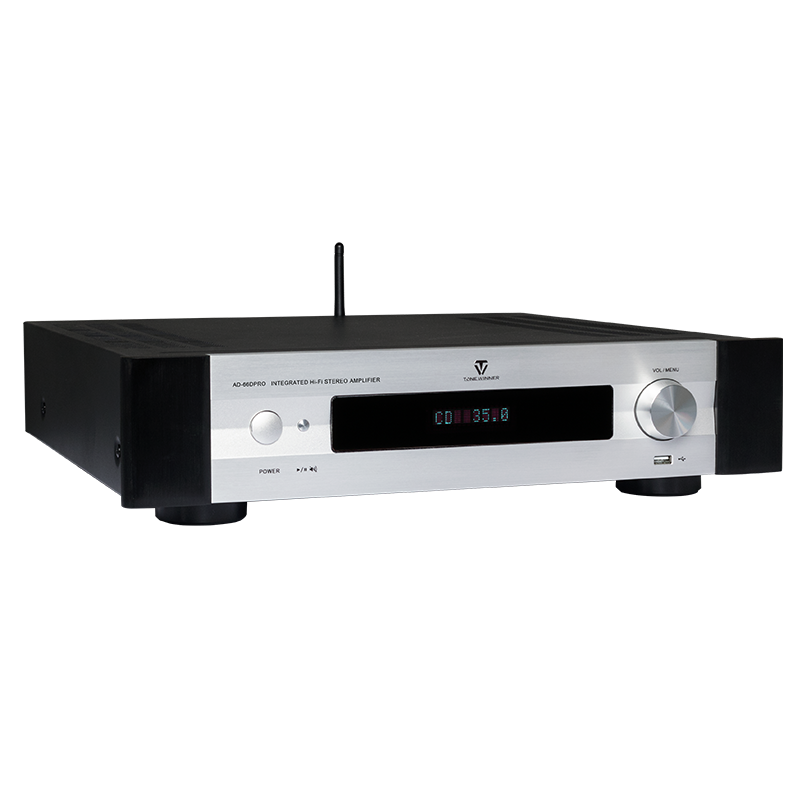

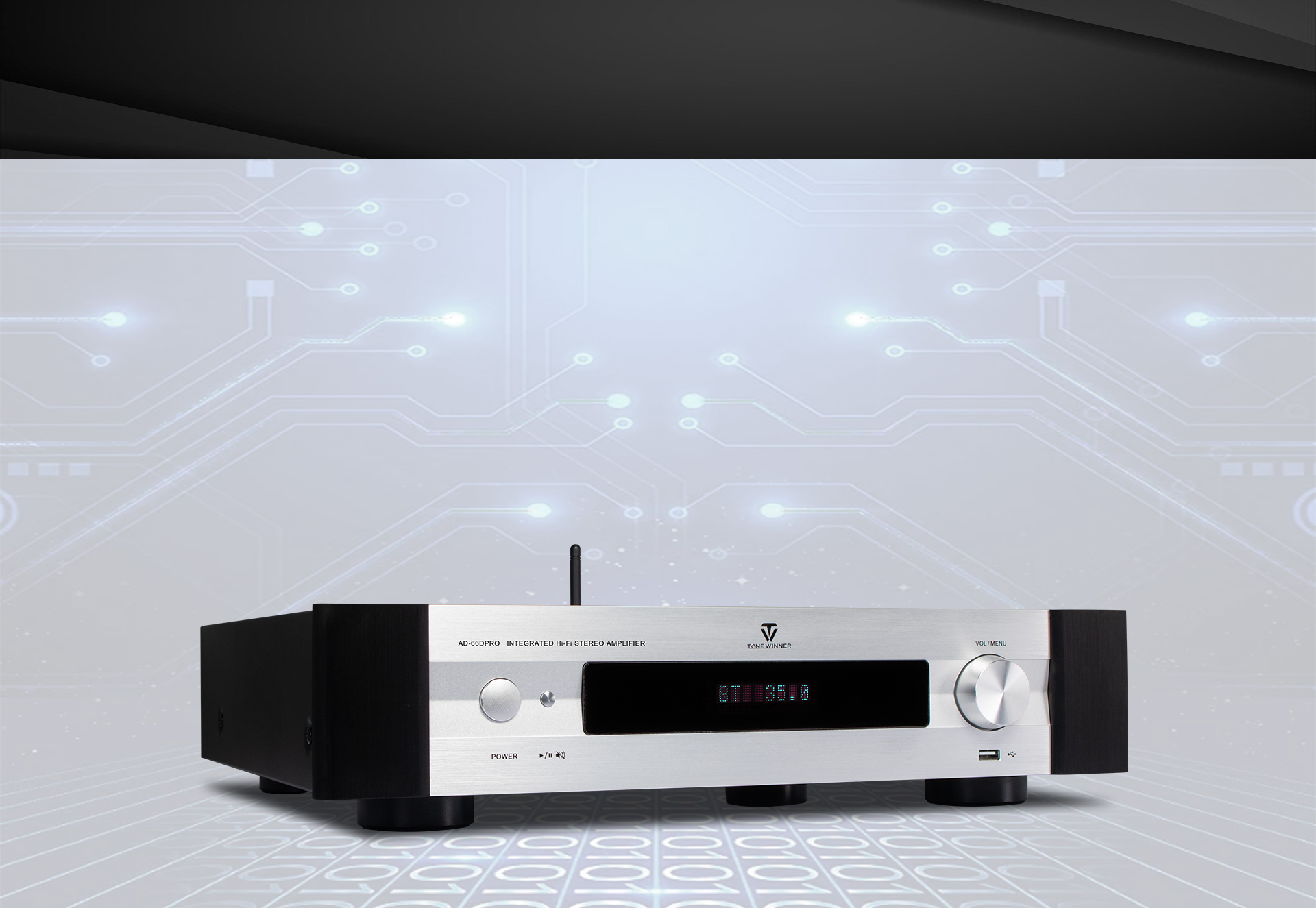

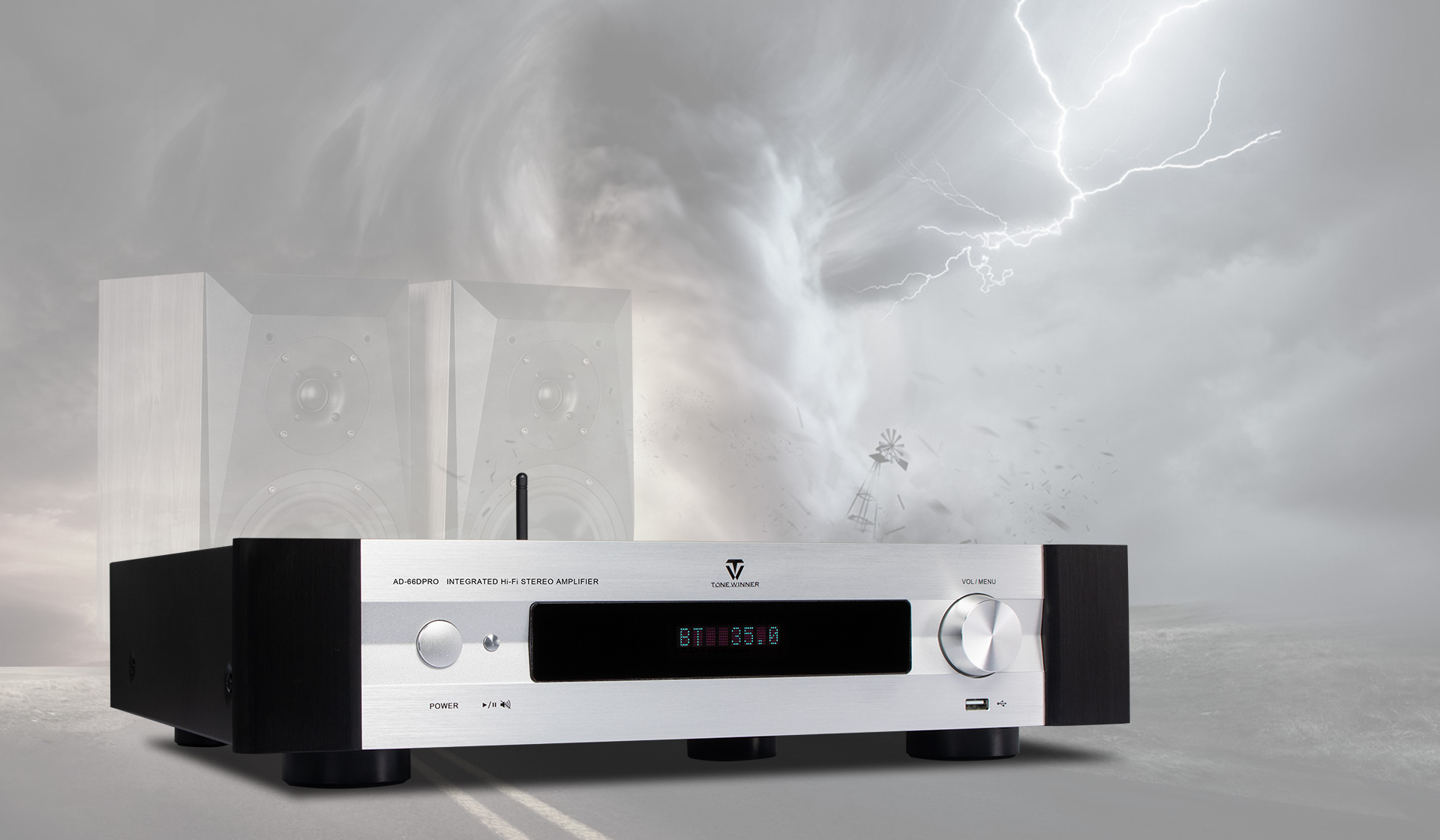

Tonewinner 2.1 Muti-function Class A integrated Hi-Fi amplifier

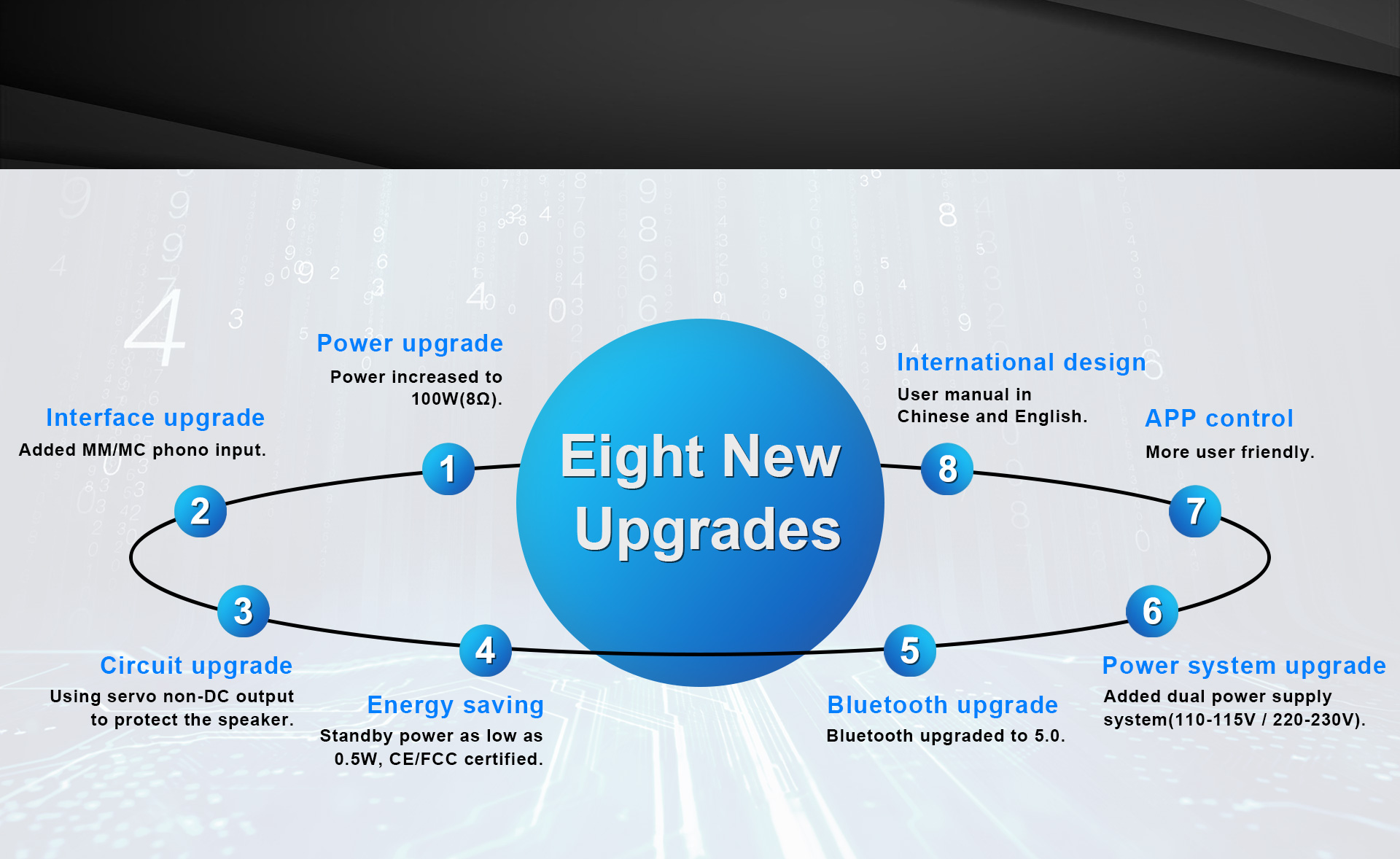

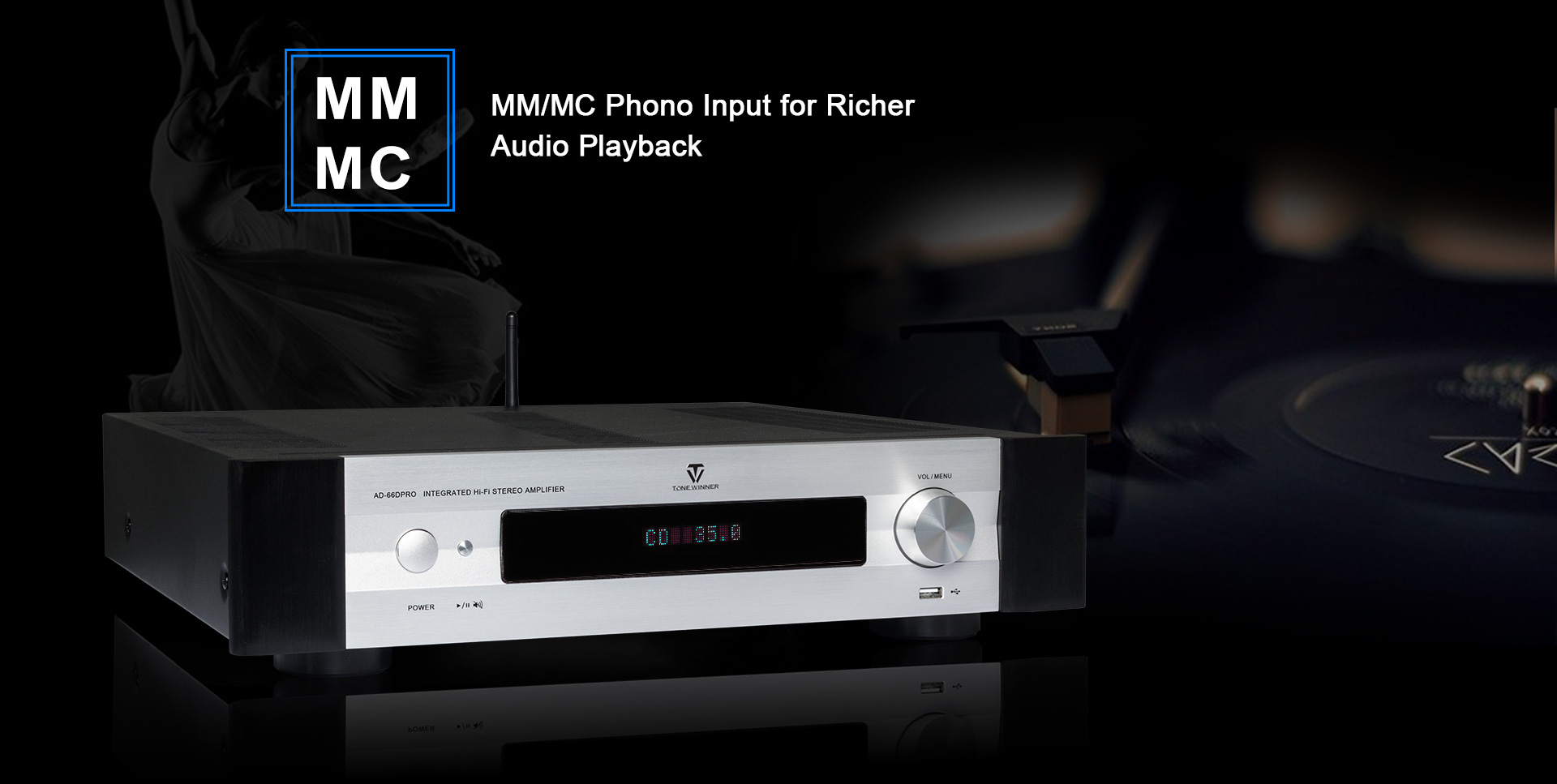

AD-66DPRO is an upgraded version of AD-66D. It has a new MM/MC phono interface, the Bluetooth version has been upgraded to 5.0, and is equipped with a new mobile APP. The AD-66DPRO keeps the most favor advantages and improve with the new features, it is a high recommend entrance level Hi-Fi amplifier. As a top 10 audio brand in China, Tonewinner has 30+ years experience in designing and manufacturing acoustic products. As an original supplier, Tonewinner always warmly welcomes distributors, partners and customers around the world.

Model
AD-66DPRO
Channels

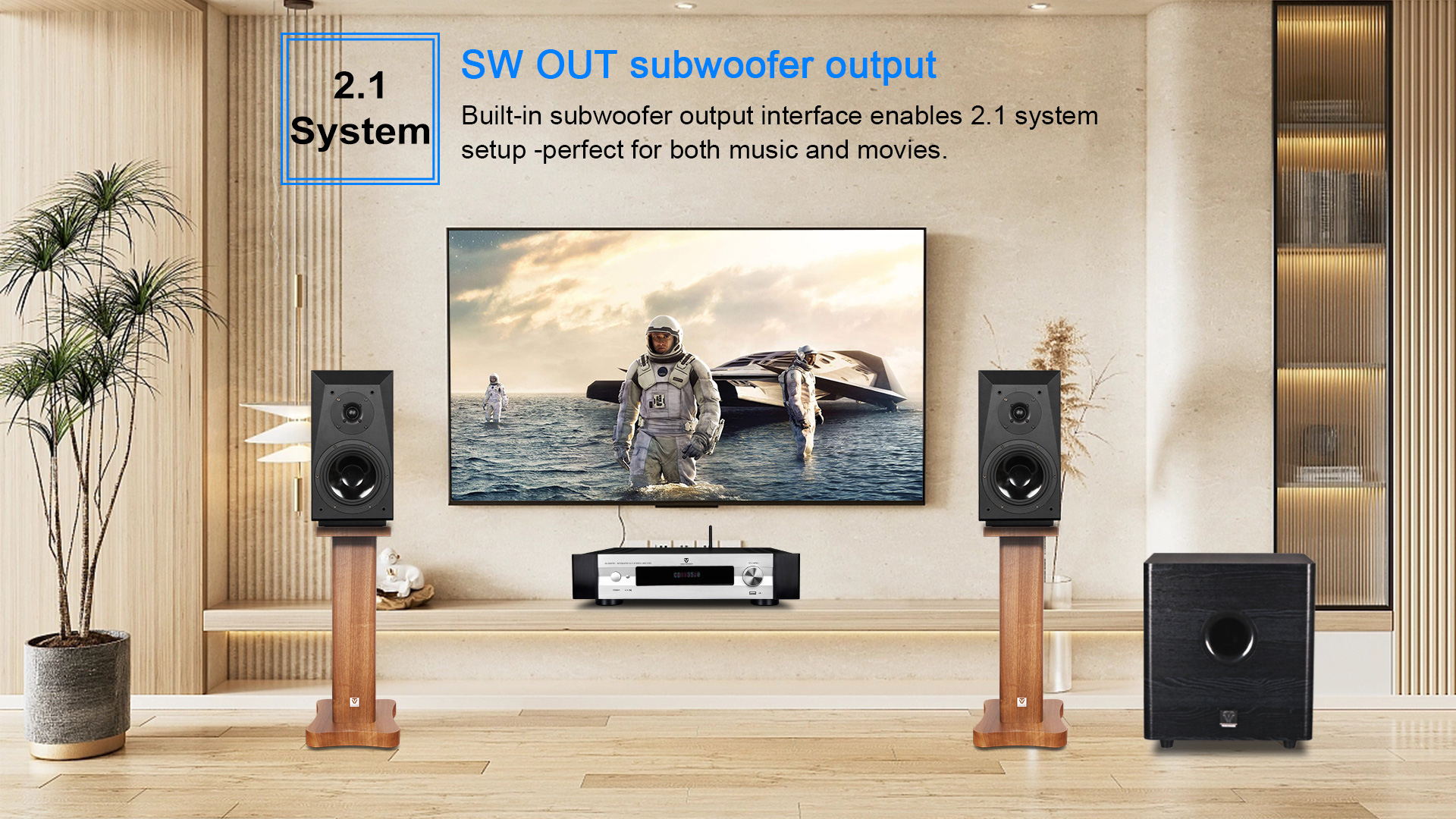

2.1
Power
100W
G.W.
13KG
THD
≤0.025%
SNR
≥95dB

Inquire now

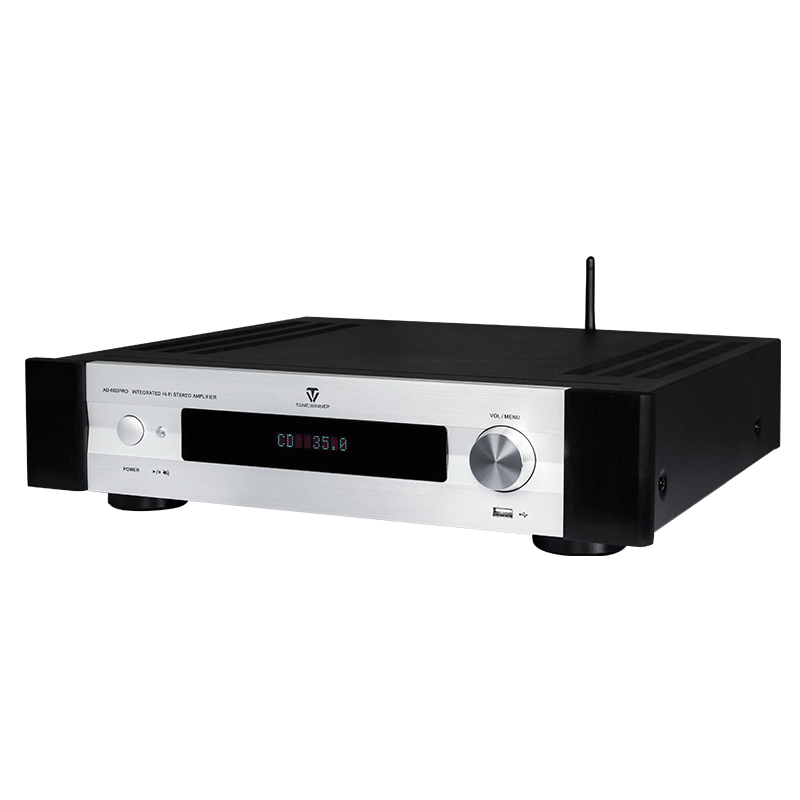

Tonewinner 2.1 Muti-function Class A integrated Hi-Fi amplifier

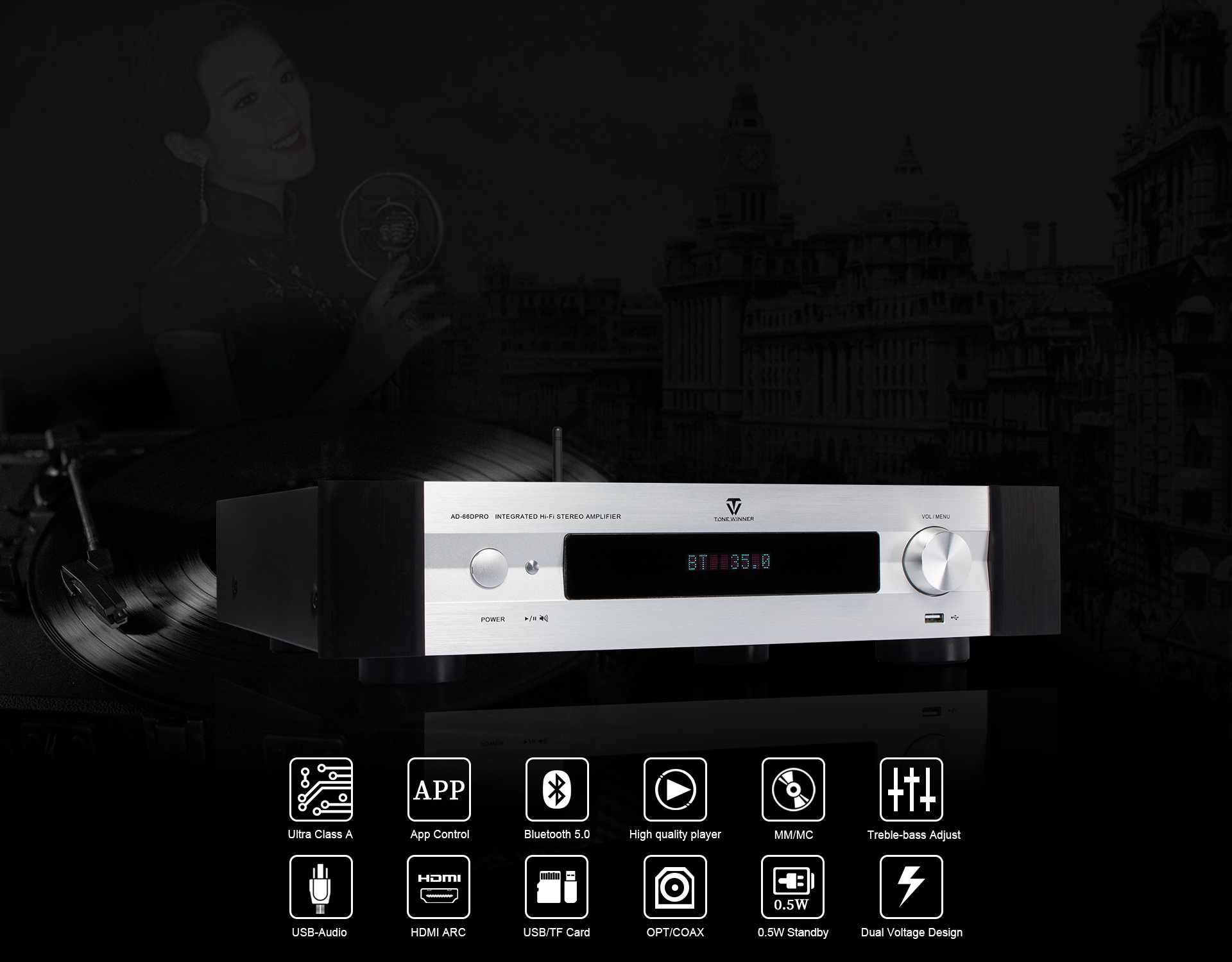

Main features

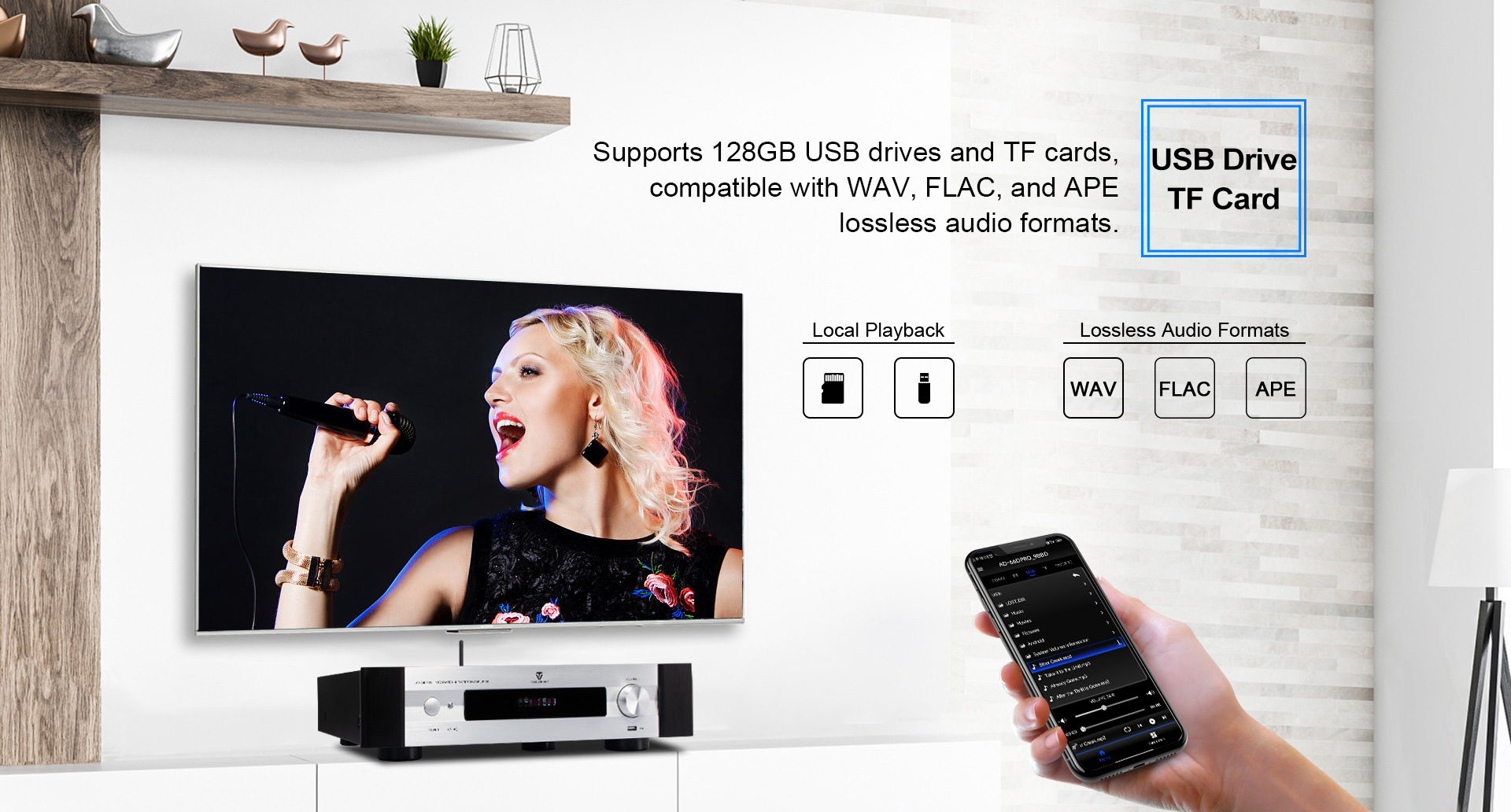

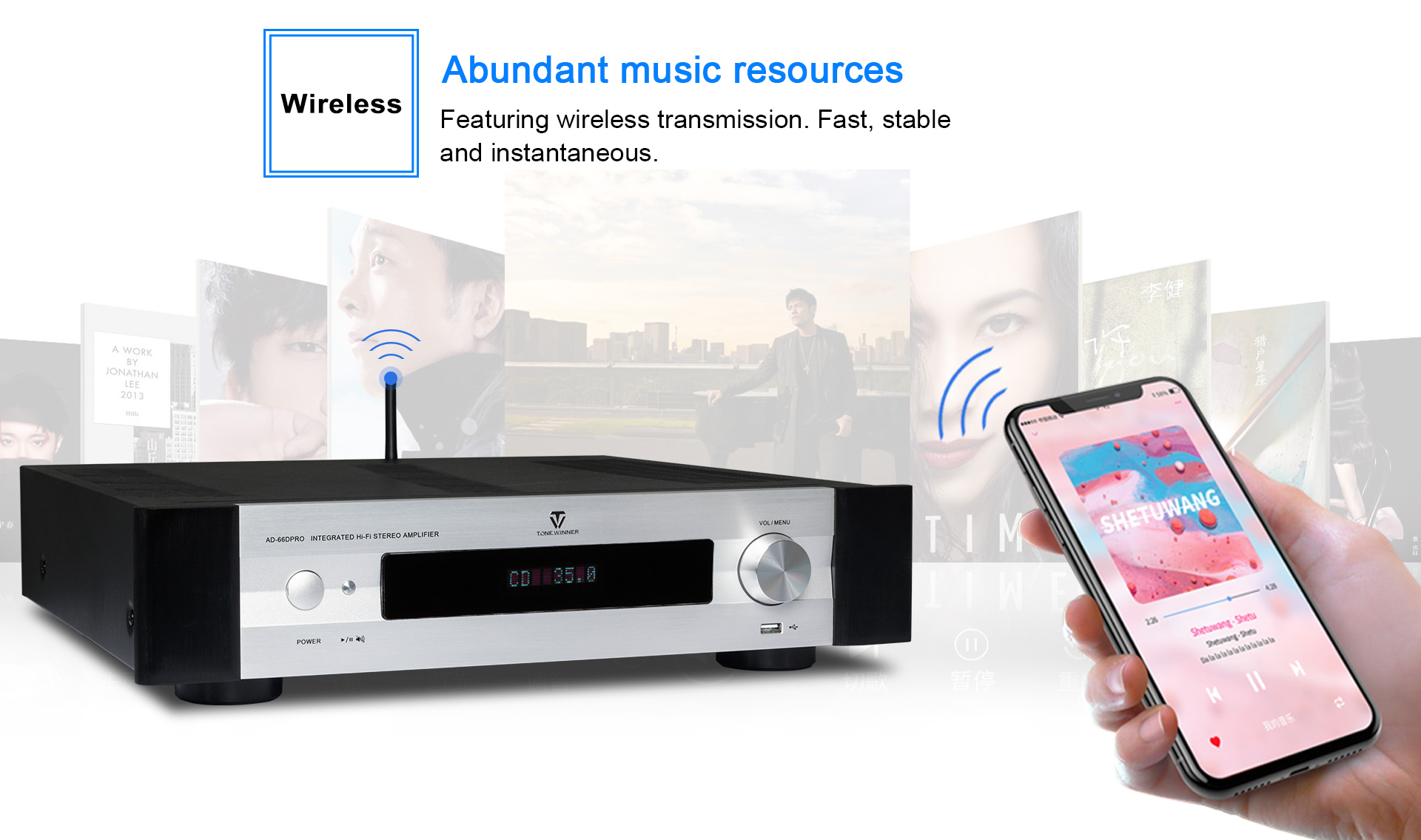

Support TF card, USB disk and Bluetooth 5.0 version.

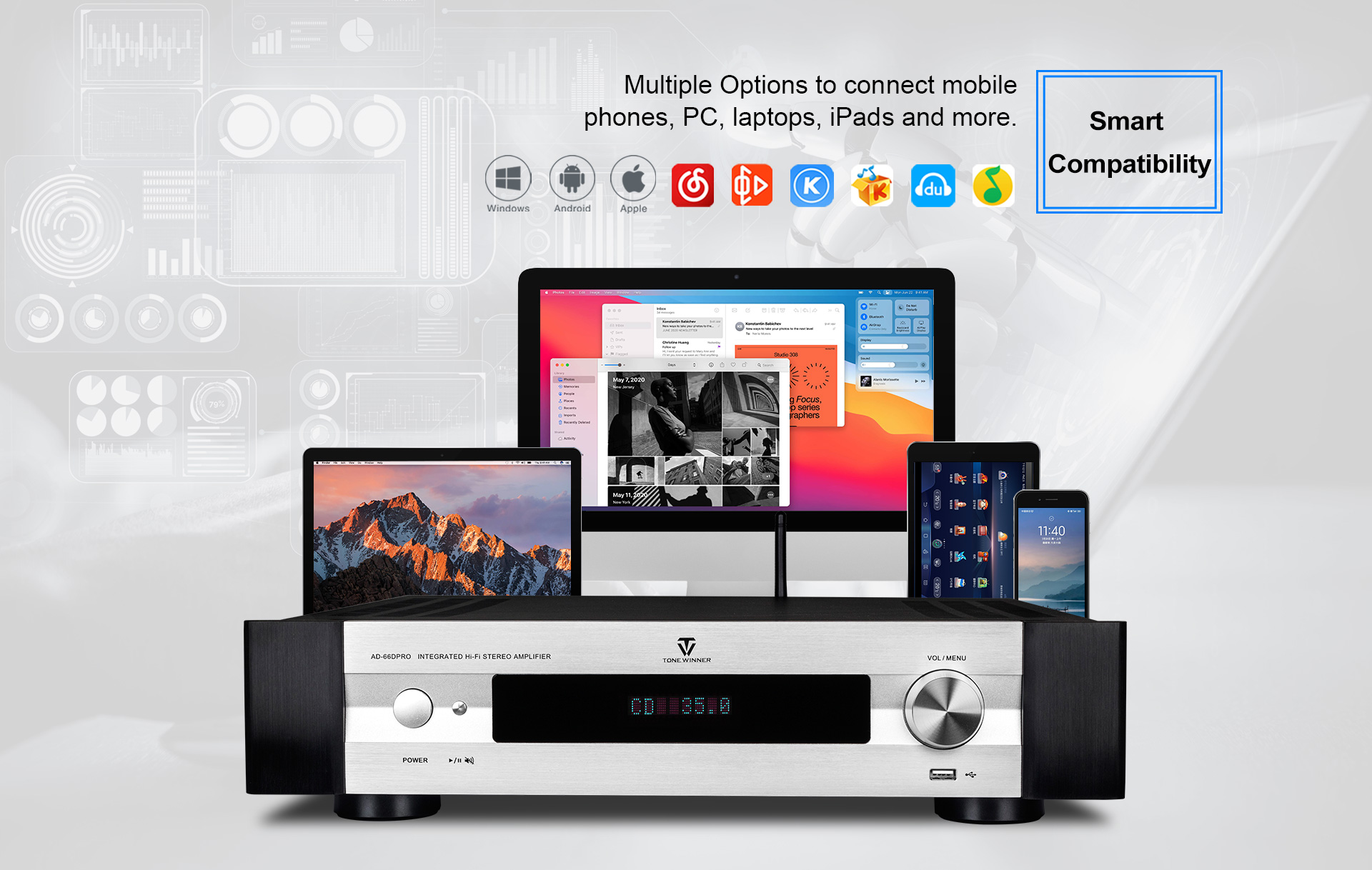

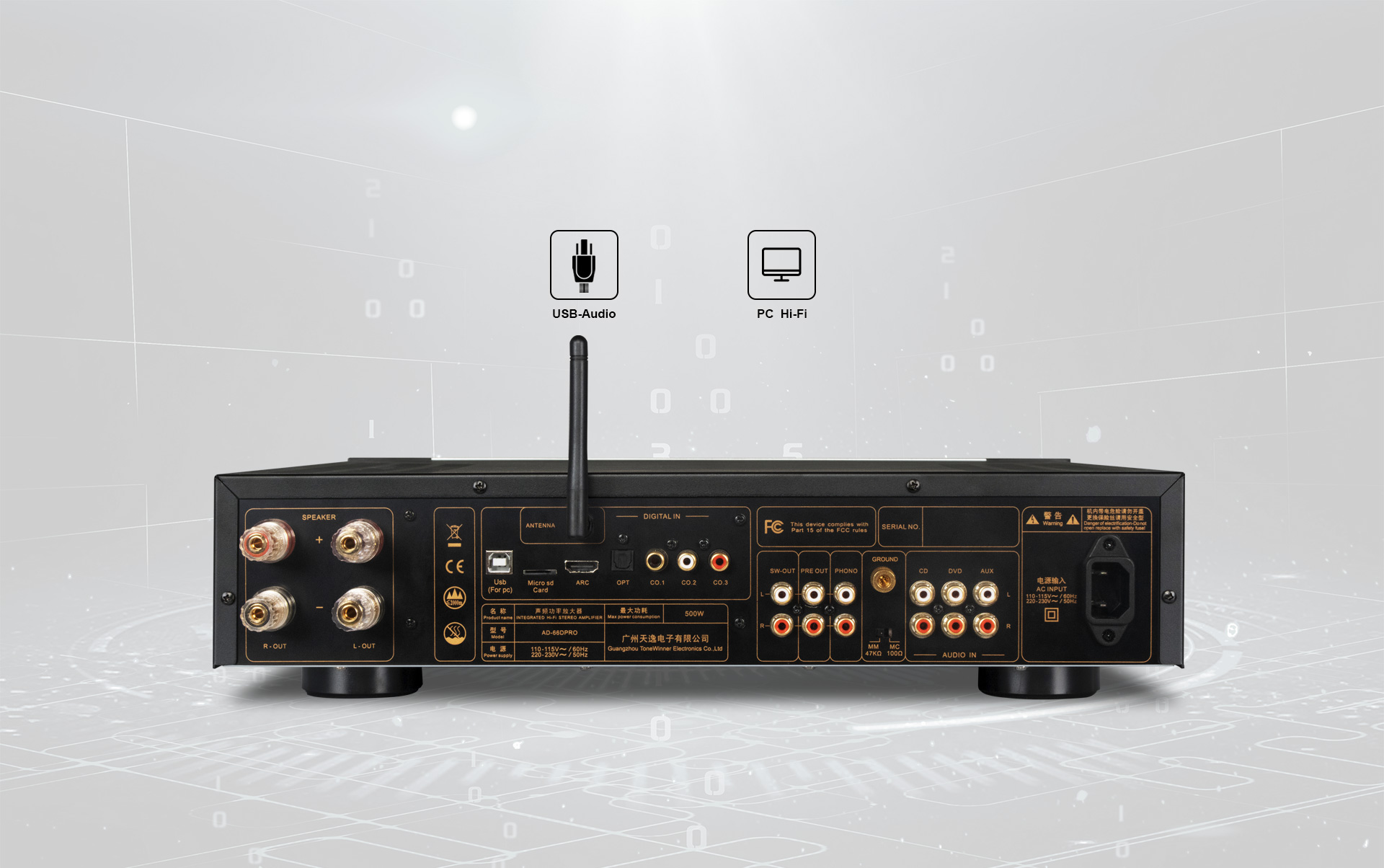

Support PC USB-Audio input, as external sound card.
Support WAV, FLAC, APE, MP3, etc.

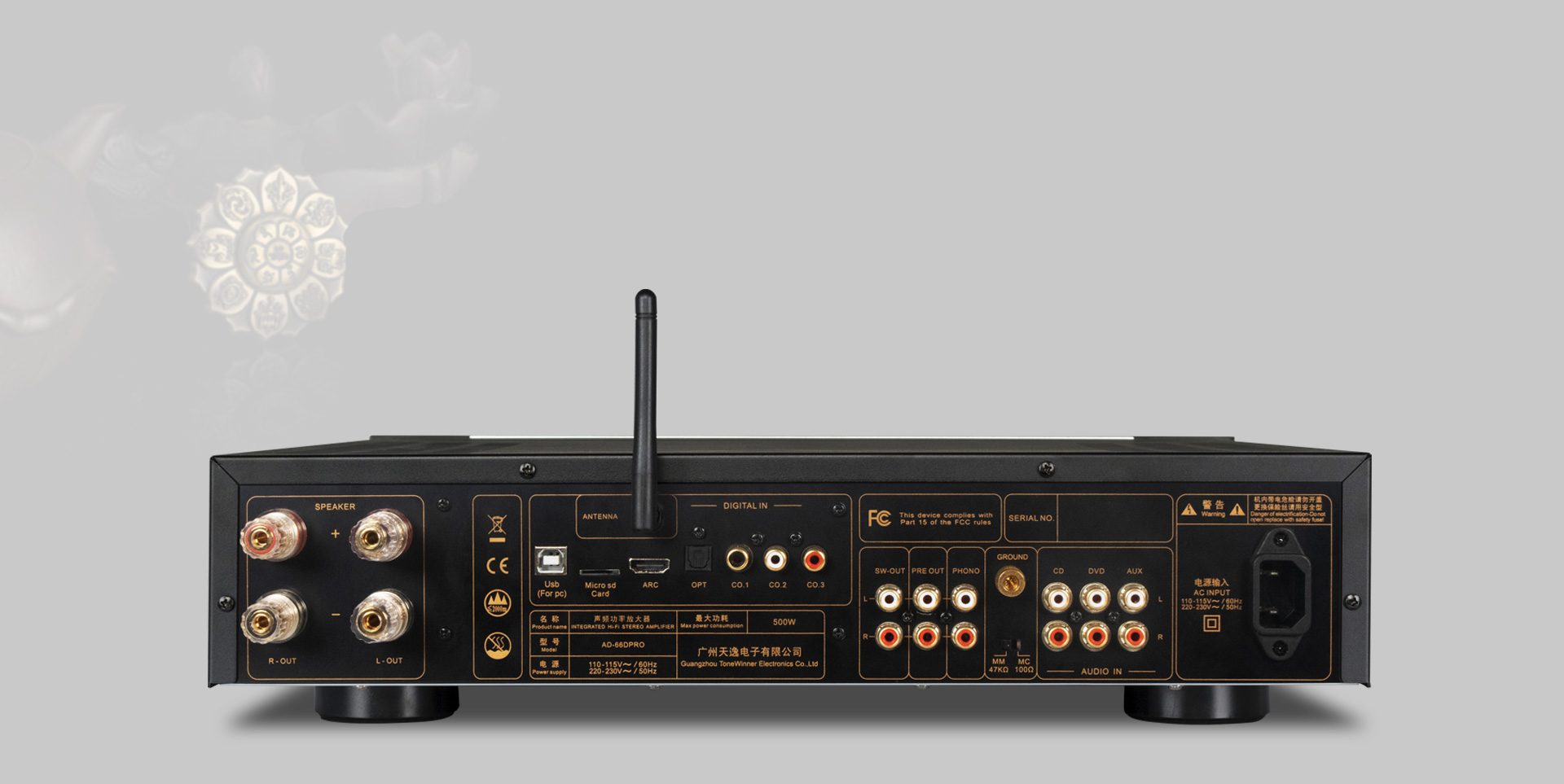

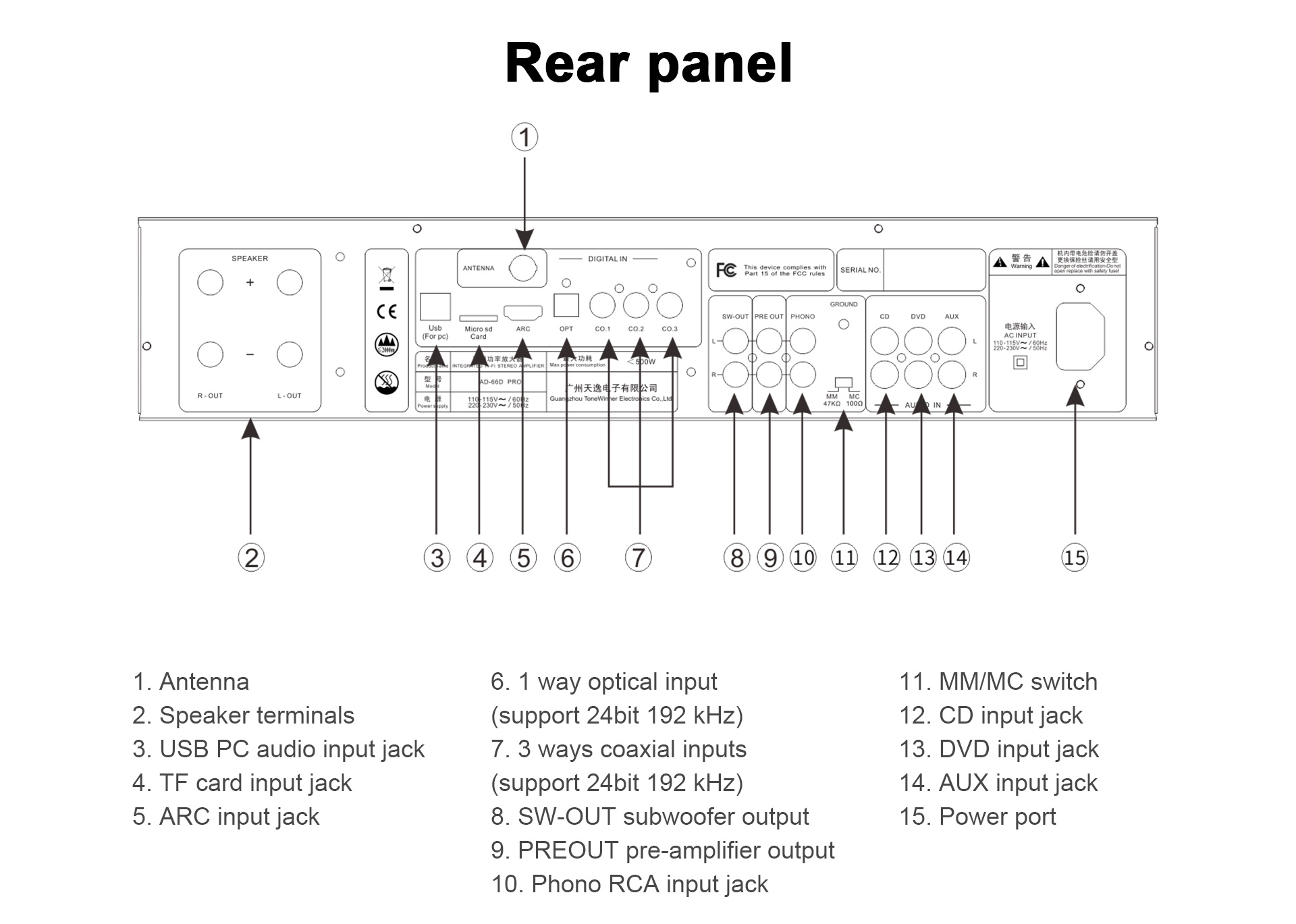

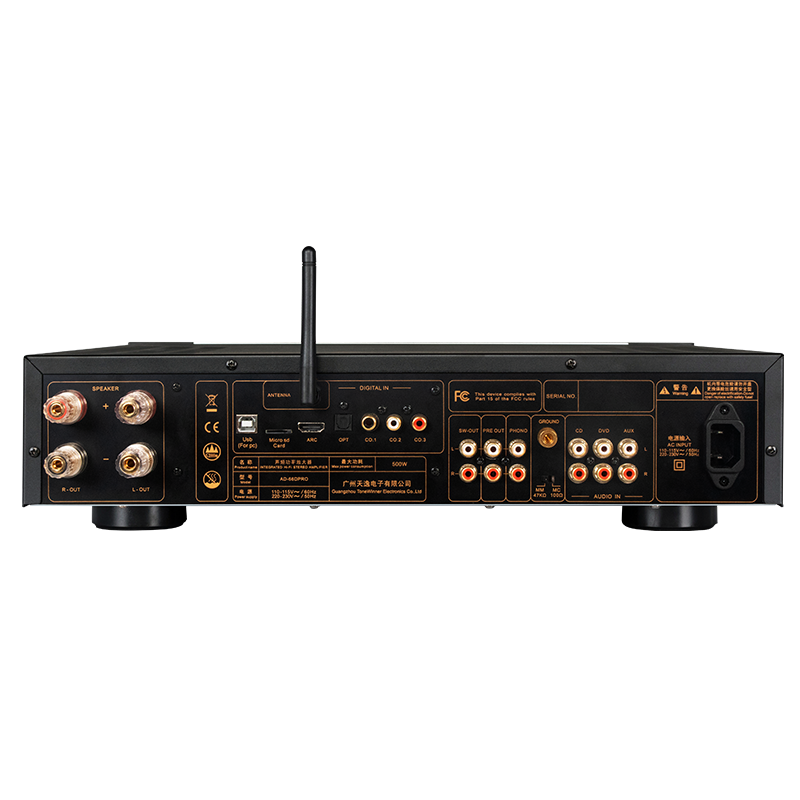

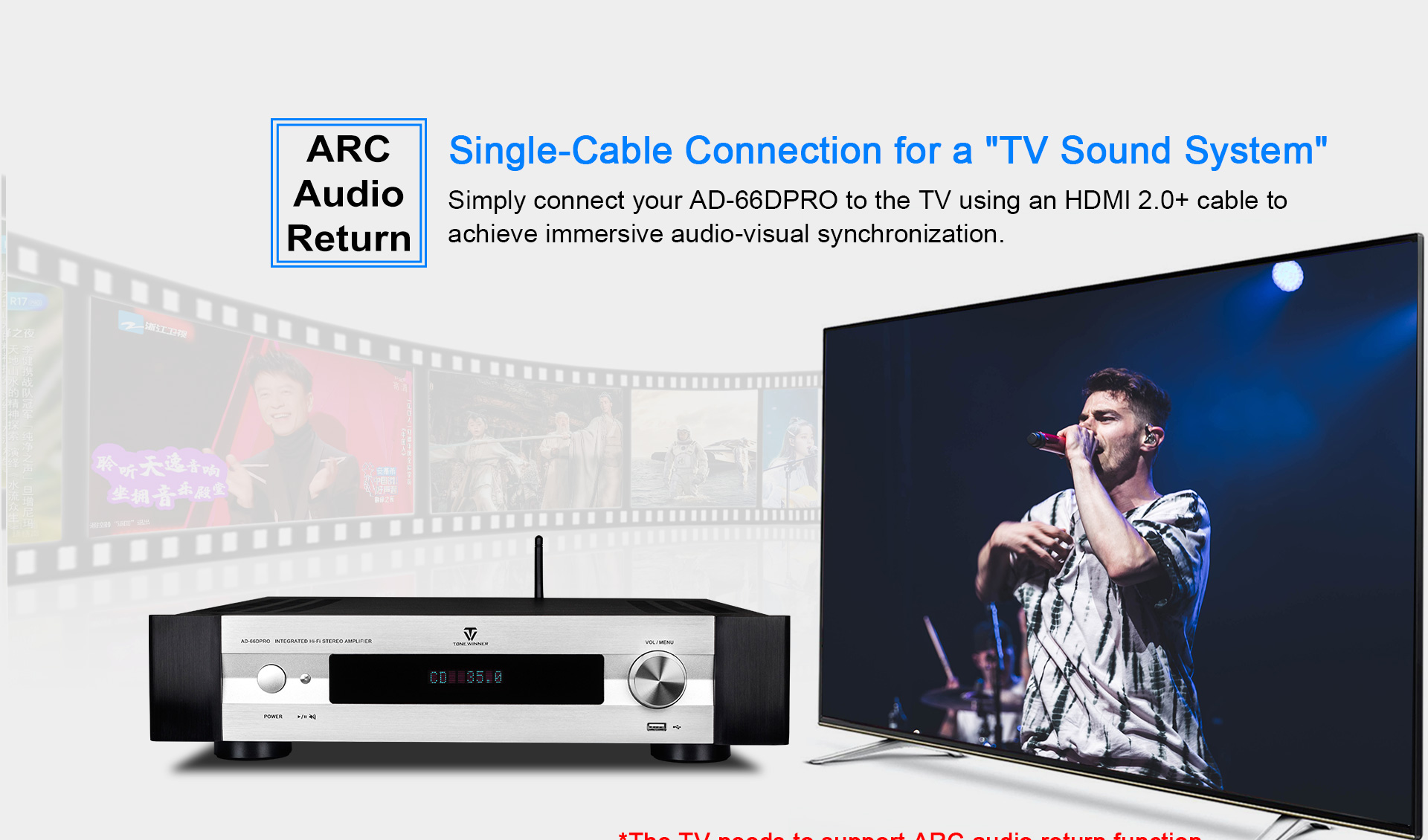

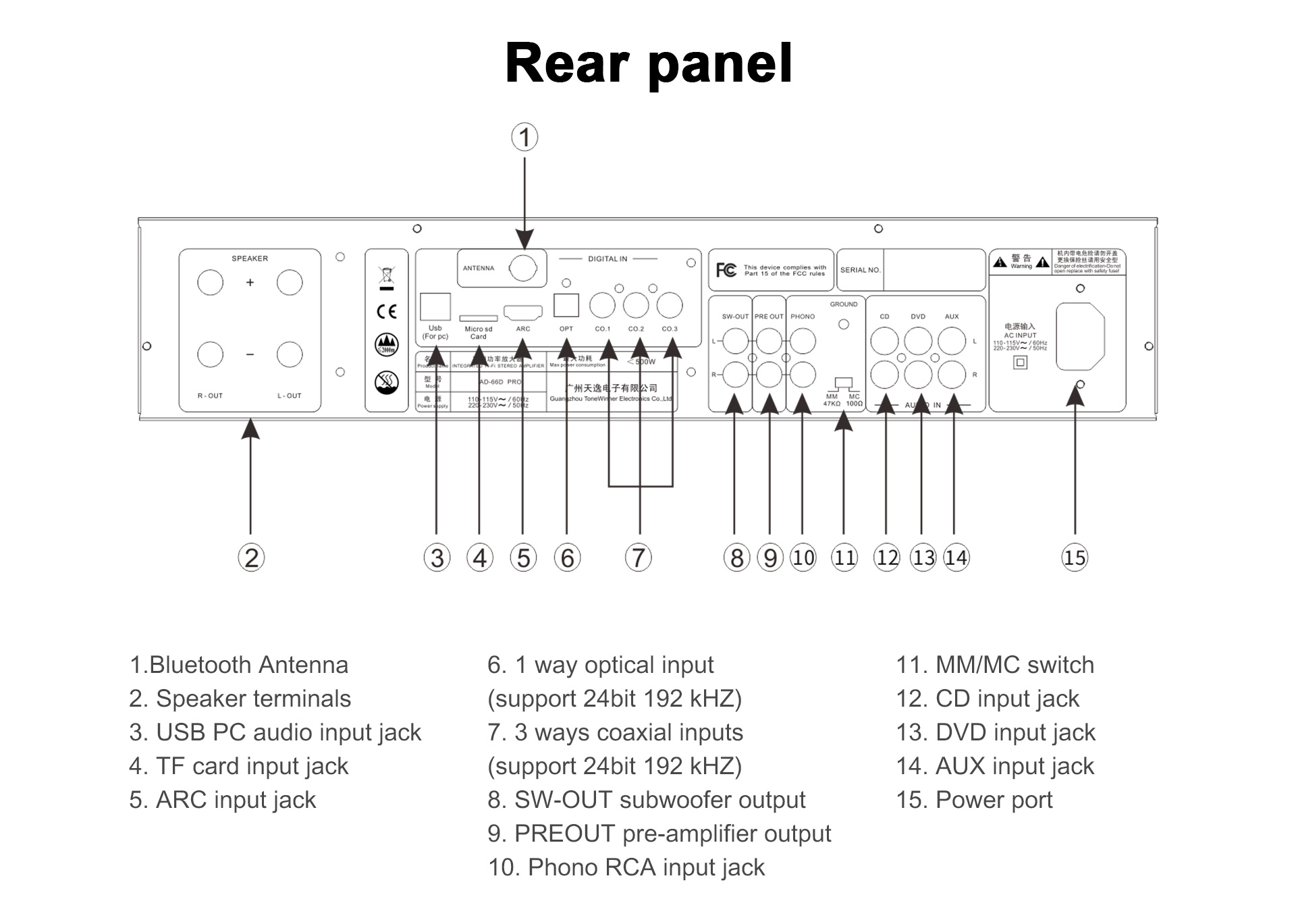

Support 3 way coaxial inputs & 1 way optical input (both support up to 24bit/3 way analog inputs, 1 way Phono and 1 way ARC input.

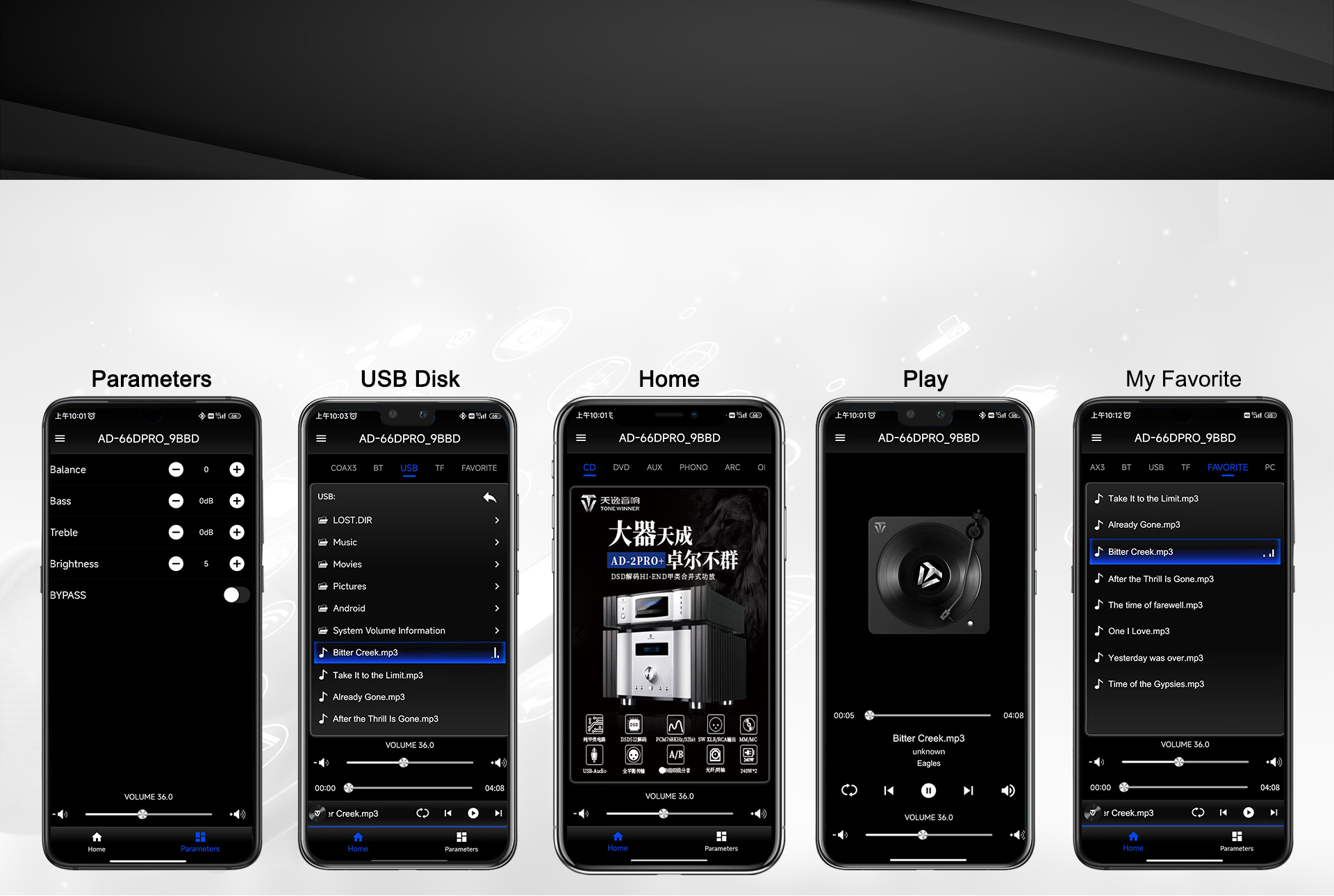

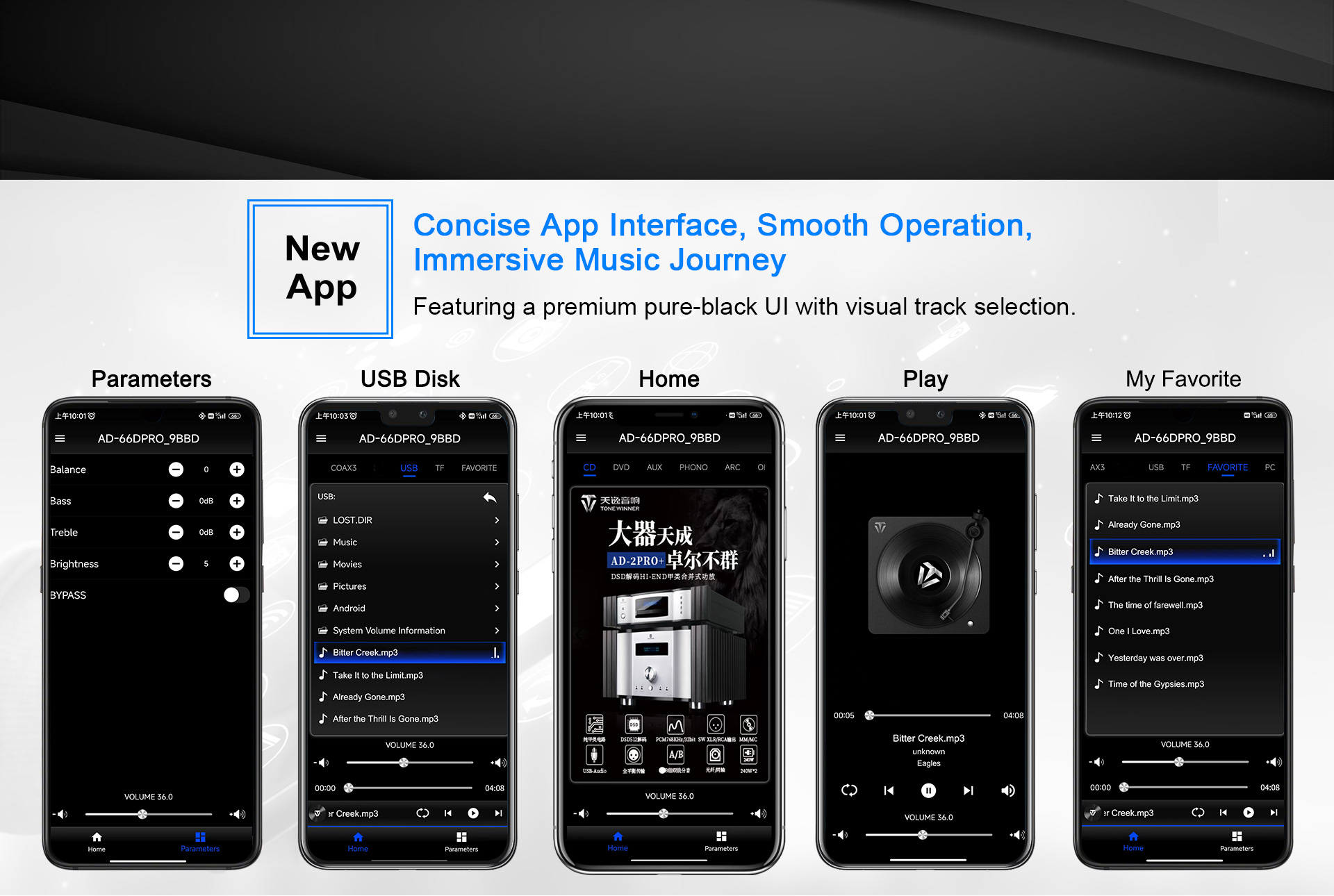

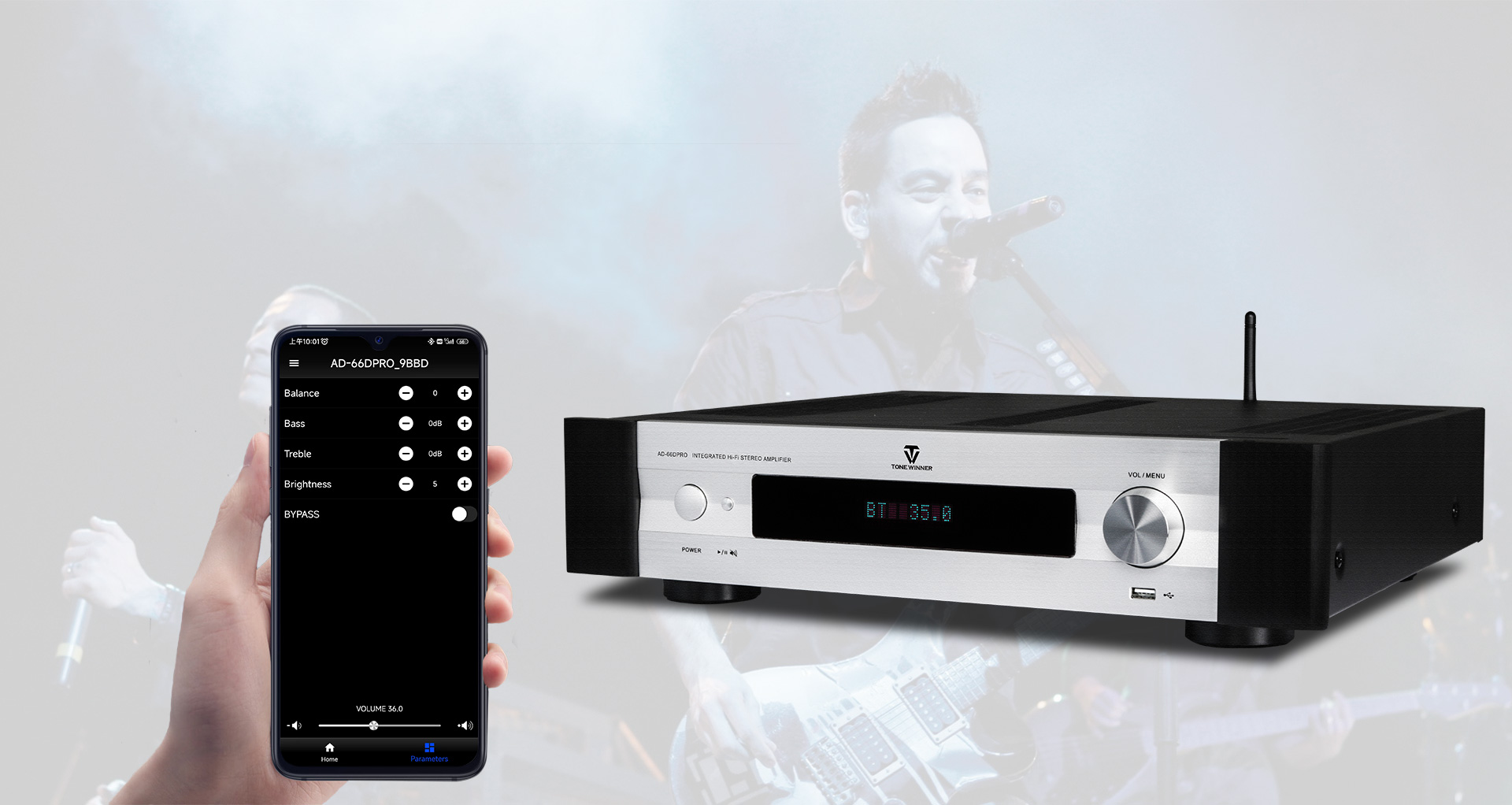

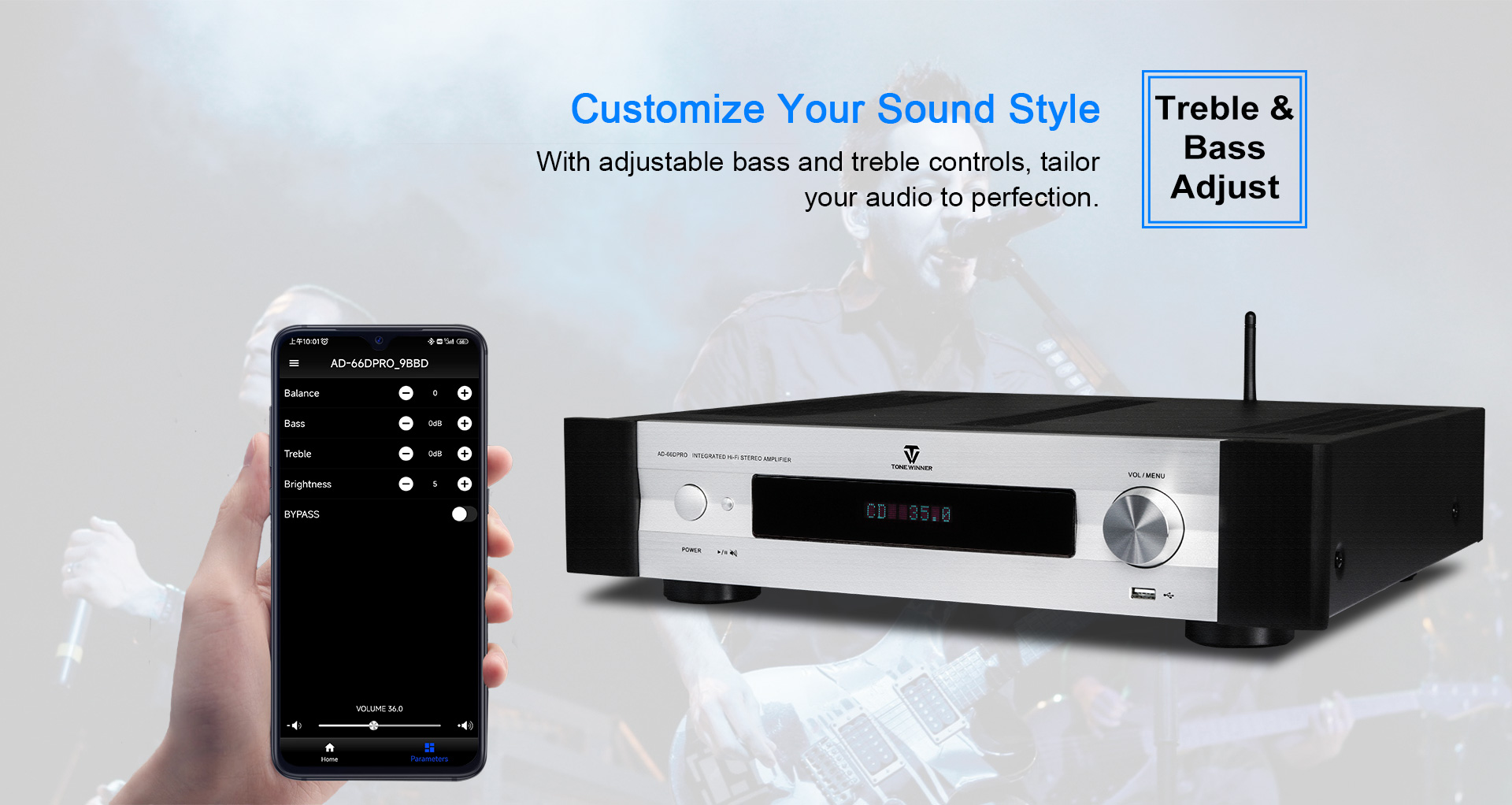

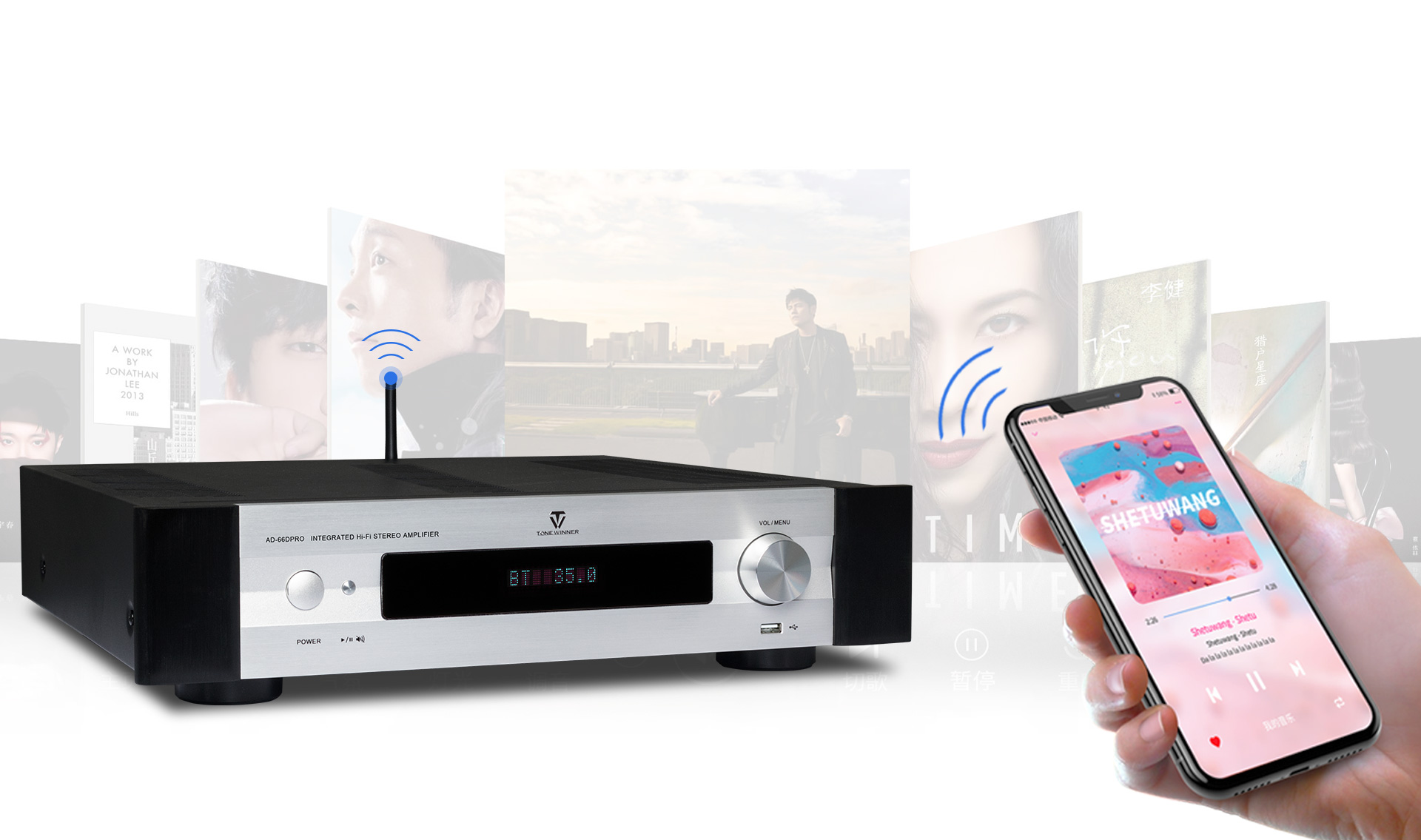

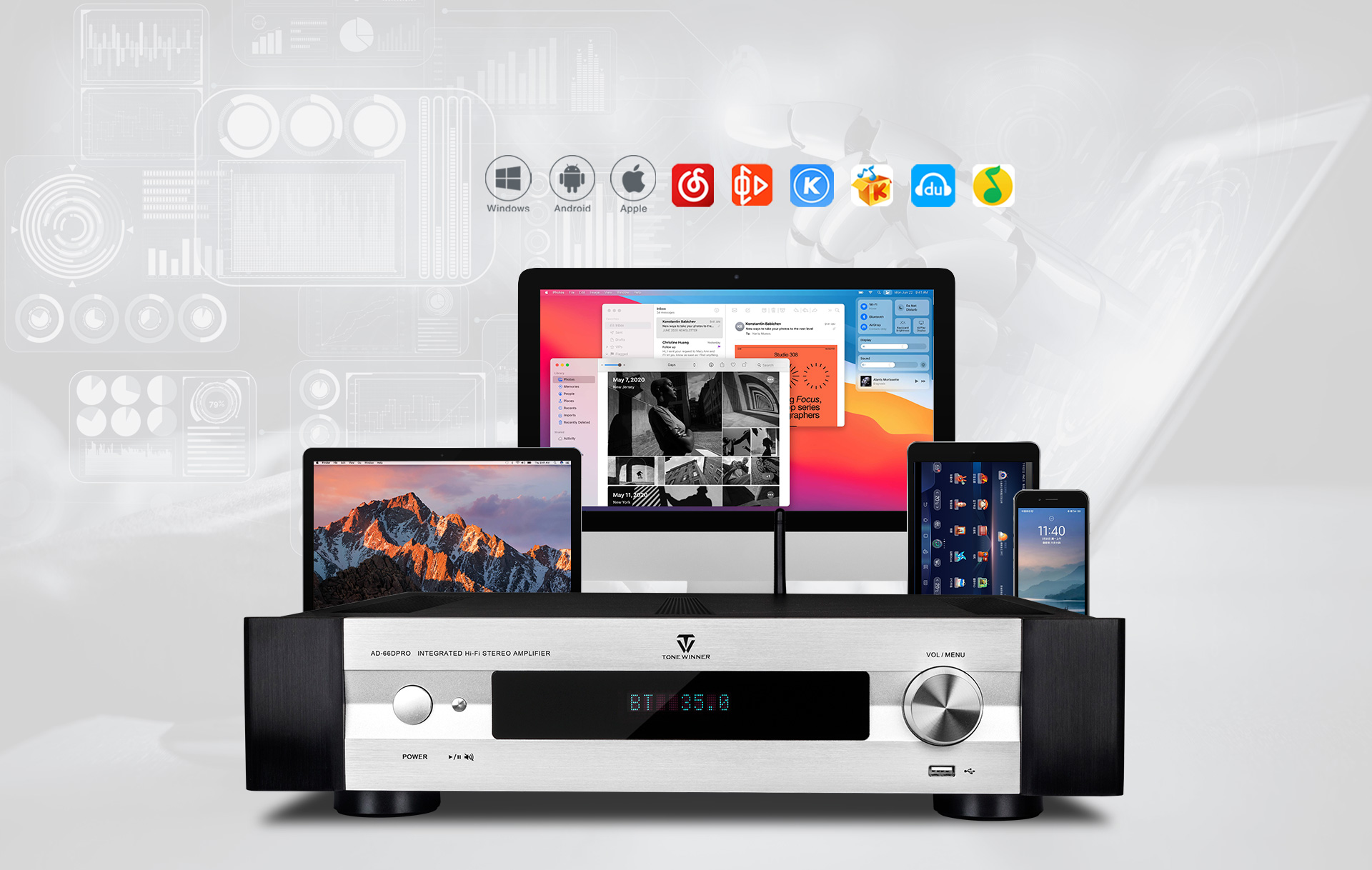

Support Android & IOS mobile phone App control.
Special Class A output technology to avoid switching distortion.

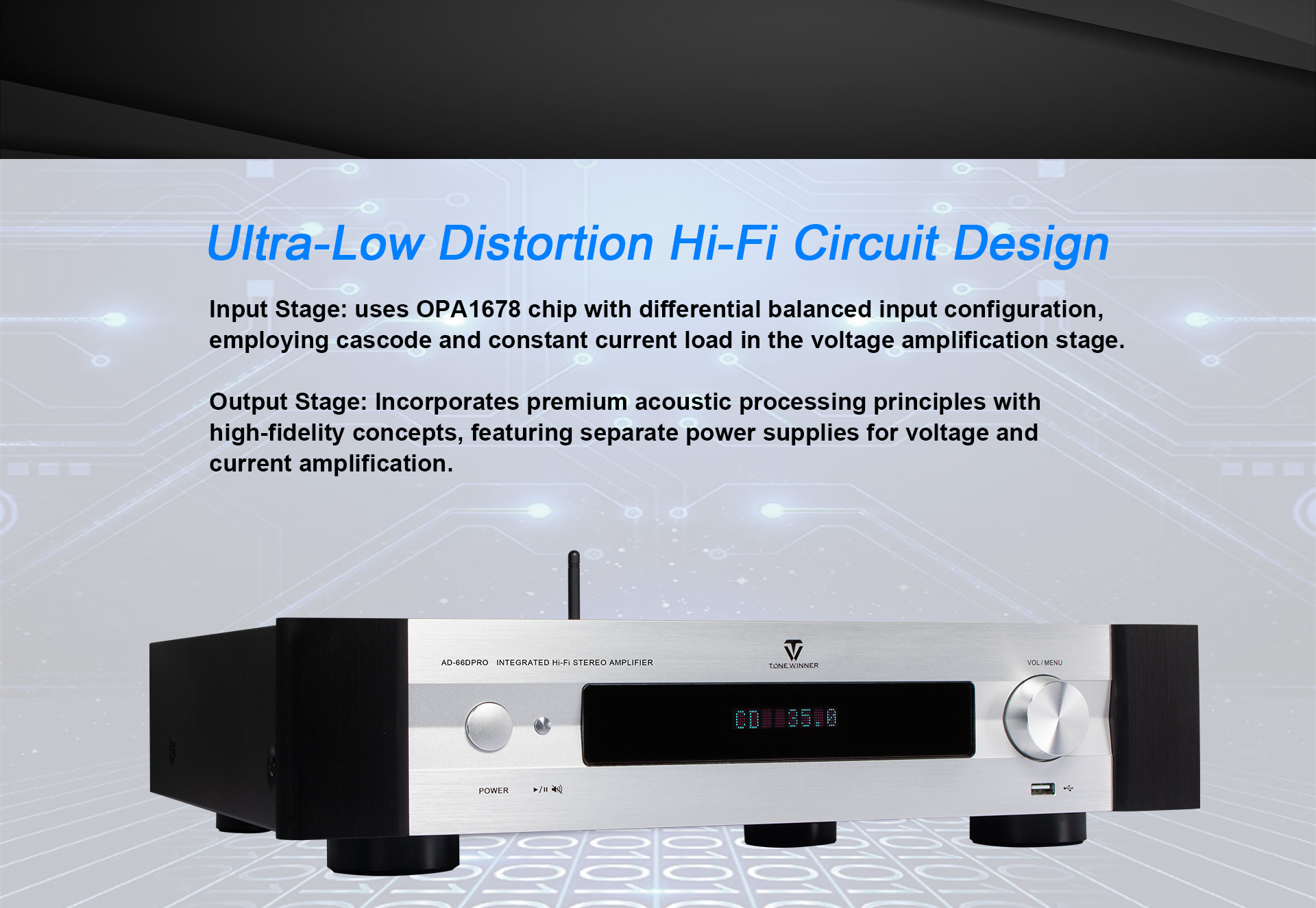

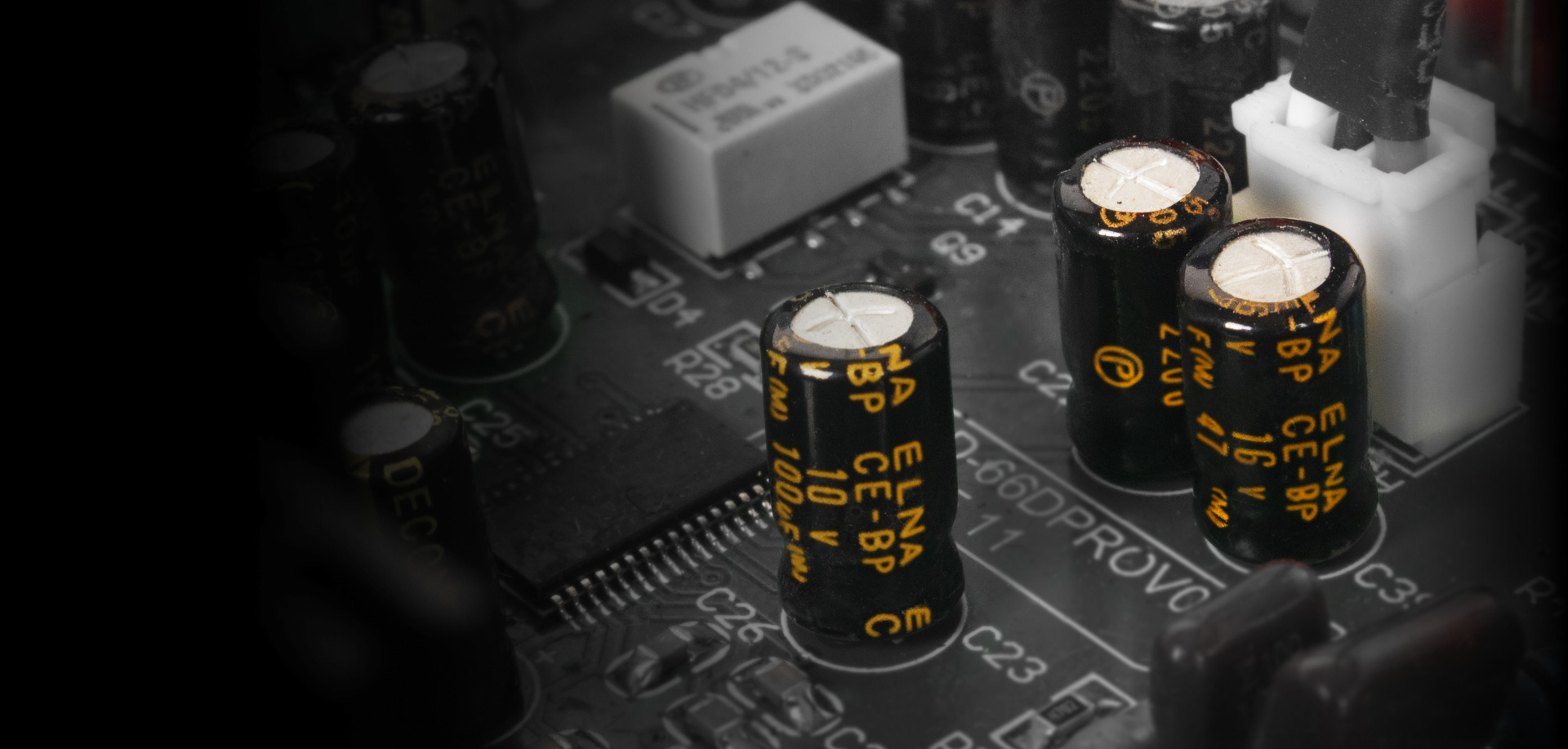

Low distortion high speed Hi-Fi circuit.

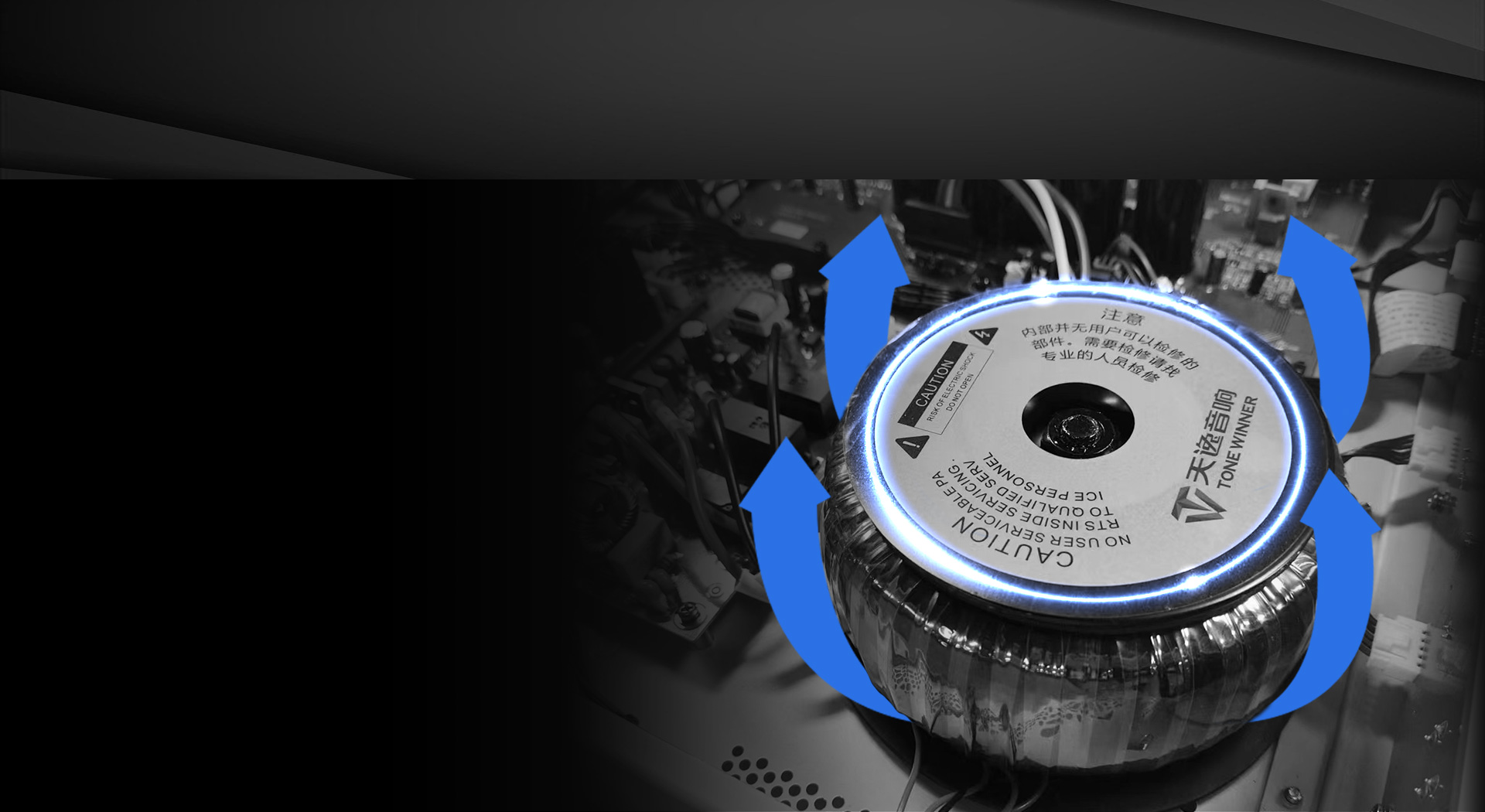

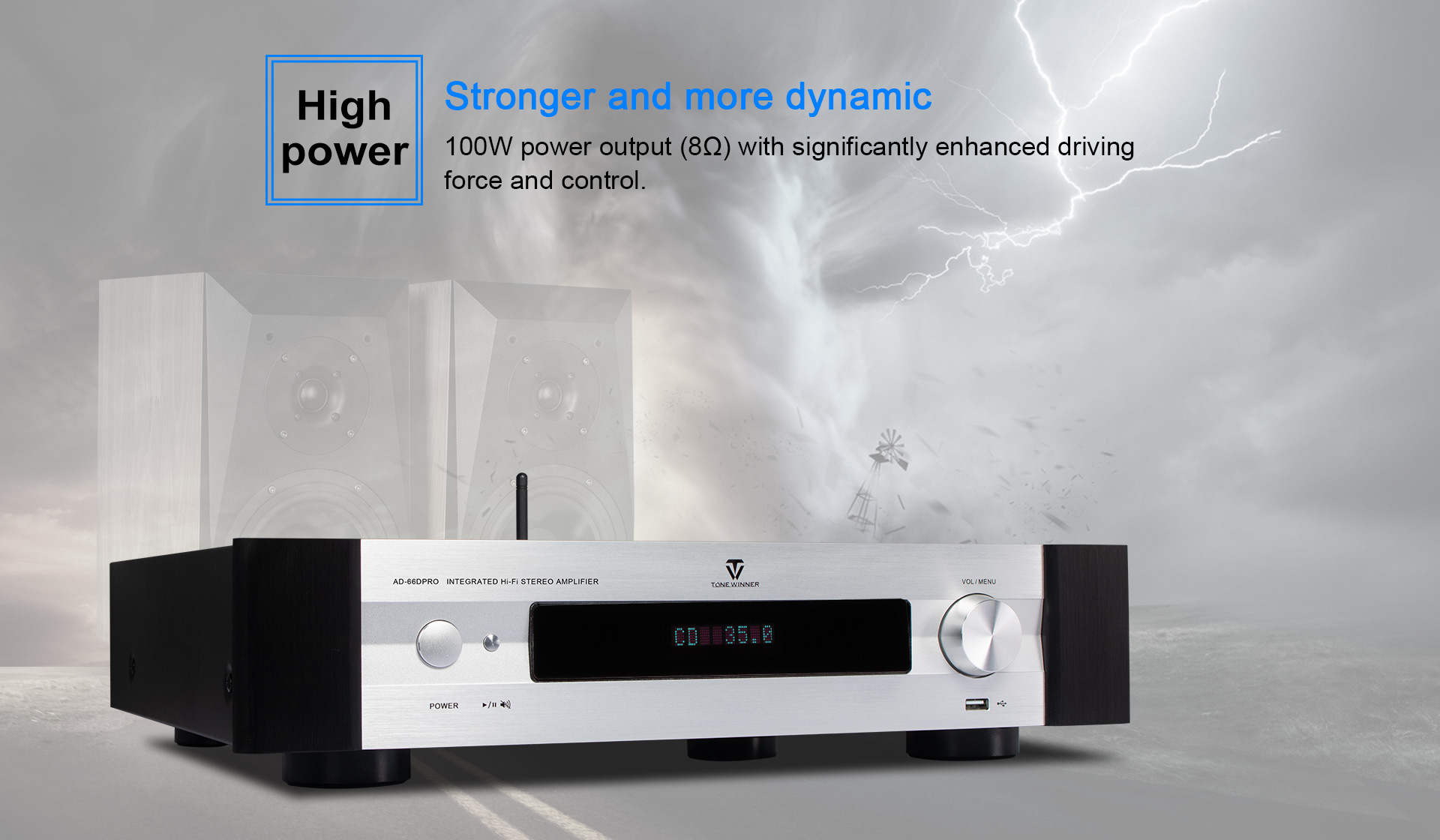

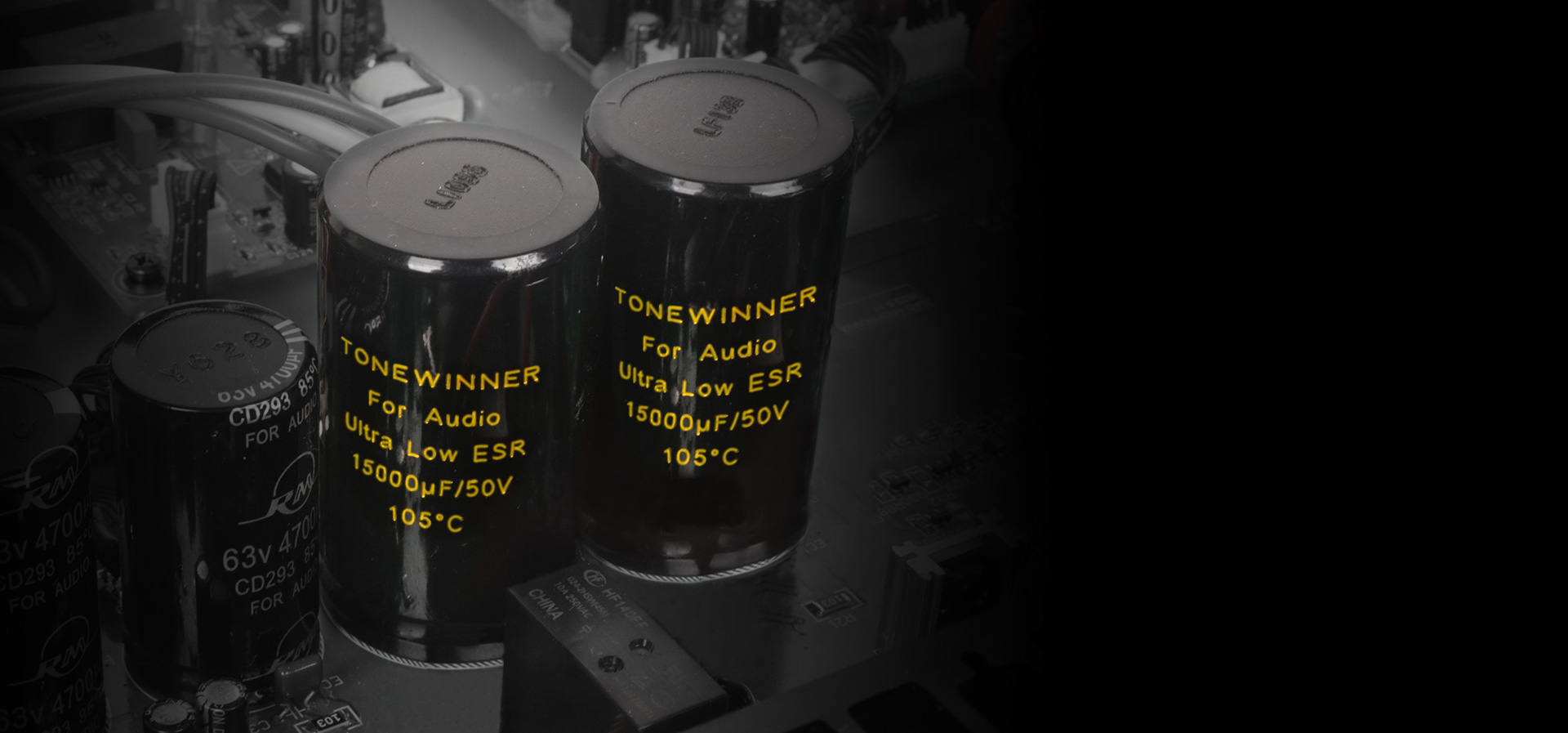

Big toroidal transformer and filter capacitor for abundant power.

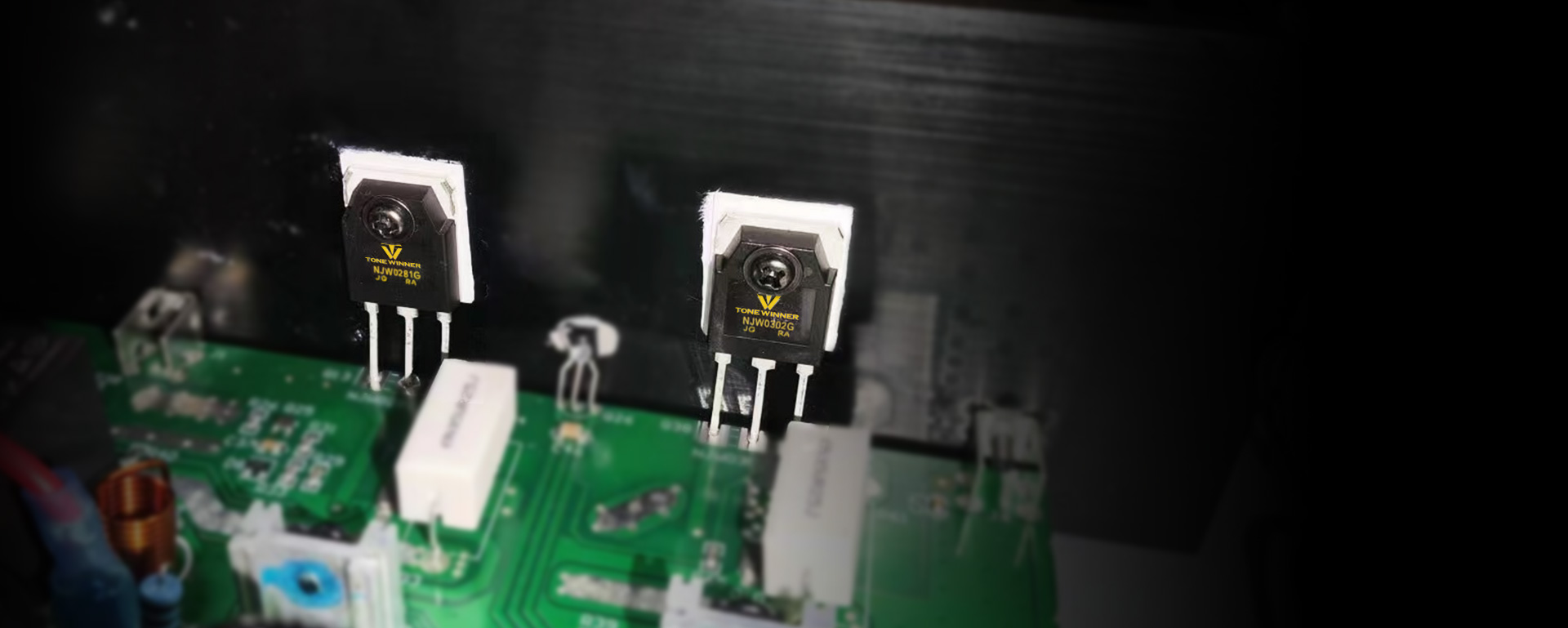

High quality transistors.
High quality electronic volume.
Built-in high quality digital player.

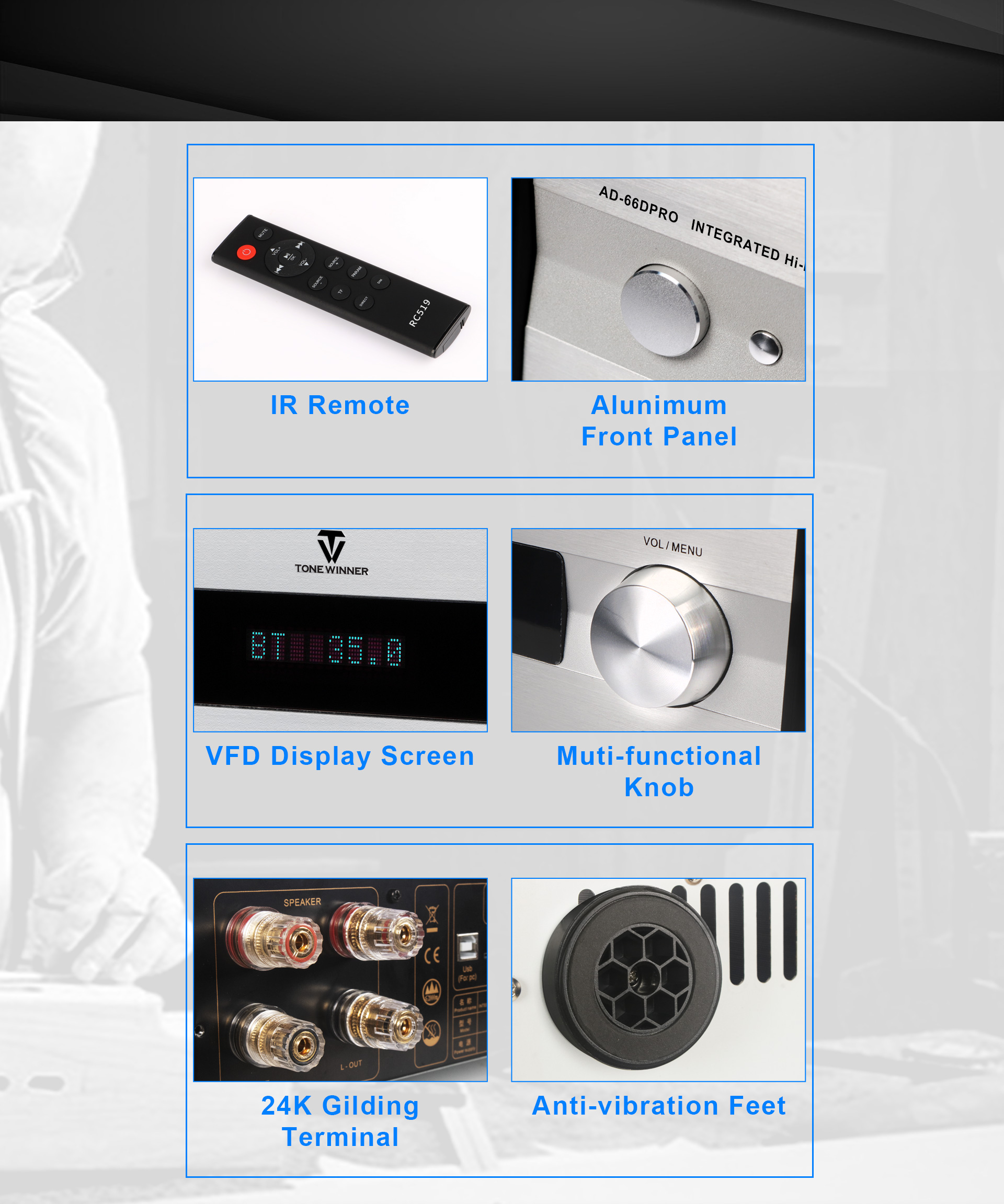

VFD display screen with 10 level brightness adjustment.
Infrared remote control.

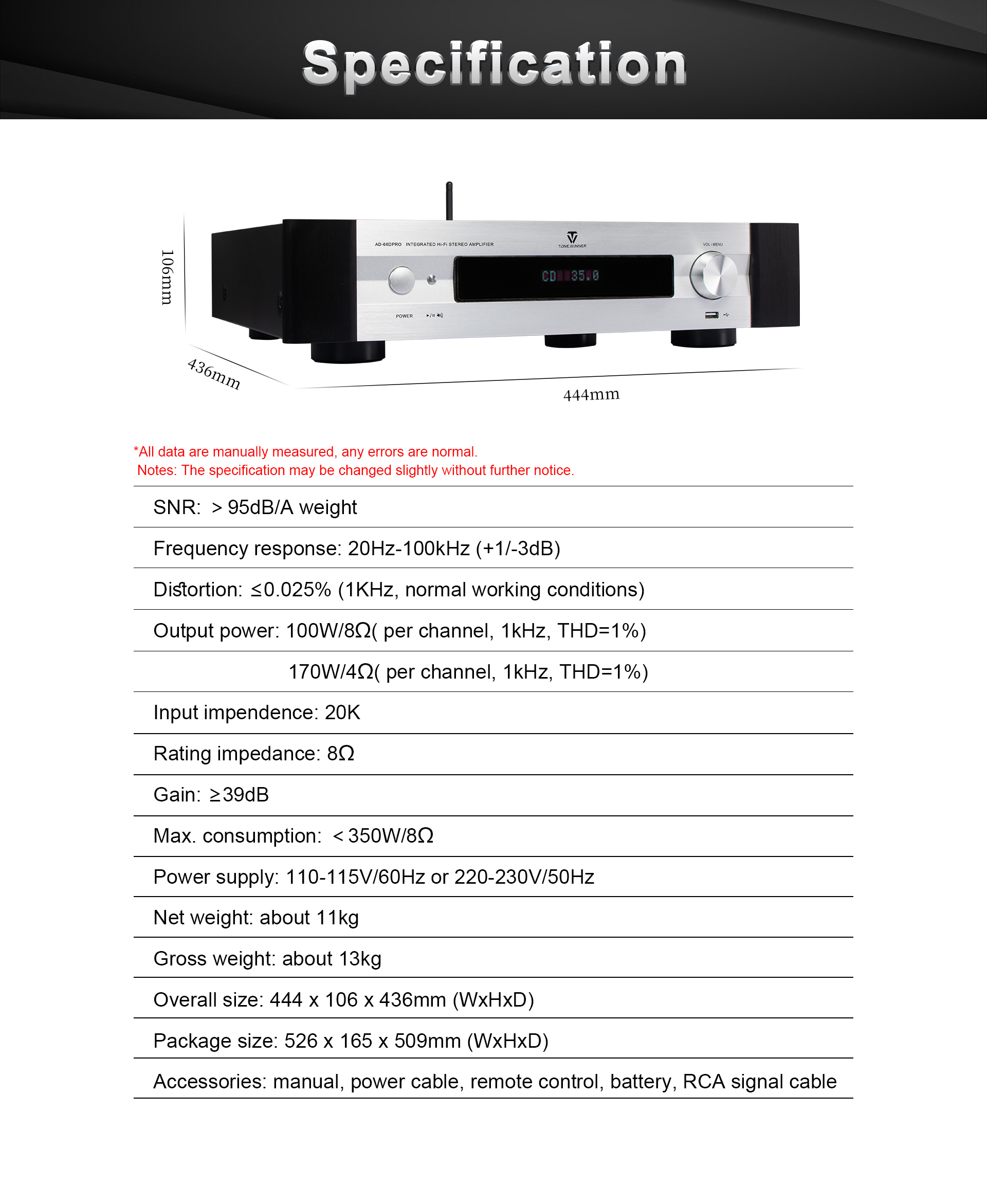

Paremeters

Model	AD-66DPRO	THD	≤0.025%(1kHz, normal working condition)
Channels	2	Rated impedance	8Ω
SNR	≥95dB(A weighted)	Frequency response	20Hz-100kHz(+1/-3dB)
Input impedance	20k	Gain	≥39dB
Power consumption	<350W/8Ω	Output power	100W/8Ω (1 channel driven, 1kHz, THD=1%) 170W/4Ω (1 channel driven, 1kHz, THD=1%)
N.W	11KG	G.W	13KG
Size	444×106×436mm(W×H×D)	Package Size	526×165×509mm(W×H×D)
